Industrial Optris Radiometric Camera

Radiometric Cameras for Industrial and R&D applications

Optris’ radiometric cameras are fully radiometric stationary thermographic systems with an excellent price-performance ratio. The thermographic camera is connected to a PC via USB and they are immediately ready to be used. Temperature data is displayed through the license-free analysis software.

Just recently, Optris have introduced a new low-cost thermal heat camera in the Xi range. The Xi series is a fusion of a rugged, compact pyrometer and a modern small thermal camera. Thanks to analogue and digital outputs as well as the option to process up to nine freely definable measuring areas using an external process interface, the Xi camera is perfectly suited for OEM applications.

Below is some further information on the range offered.

High Resolution Radiometric Cameras

Infrared camera Optris

PI 400 / PI 450

checked

All Optris IR thermal imaging cameras have the same innovative design at their core. The main focus is on miniature ruggedised cameras suitable for use in industrial production and R&D environments where other USB cameras would not be suitable.

checked

All of our cameras are housed in an IP67 aluminium body which is designed to be as small as possible. Our largest industrial thermal imaging camera measures just 56 x 46 x 90mm including the lens and weighs 320g.

checked

The complete range is also intended to be easy to use with Plug-and-Play USB functionality. With fully featured license-free software included with every USB thermal camera, you can be up and running extremely quickly.

checked

Every thermal camera in the range is fully radiometric as standard, the temperature is measured at every pixel on every frame. What’s more, this radiometry data is stored with your still images or video recordings, available for recall at any time in the future. With the capability of playing back videos at reduced speed, you can now see every detail of your process like never before.

checked

The temperature range is not limited either. All Optris USB thermal imagers will measure between -20 and 900°C out of the box. For special applications, our PI450 G7 and PI640 G7 cameras for glass processes will measure up to 1500°C as standard and our PI 1M and 05M cameras for high-temperature metals will measure up to 2000°C as standard. No expensive options required!

checked

To operate in the most demanding of applications, our cameras are supported by a full range of accessories which allow operation in places you really would not expect. Ambient temperatures of up to 315°C are not an issue. Dusty environments are handled with ease. Outdoor conditions are dealt with too. The Optris PI camera can even work in high-pressure environments such as composite material autoclaves. Networking of the thermal cameras is possible through Ethernet conversion.

Therefore, it can be seen that it is not easy to determine the finished accuracy of a Pt100 temperature sensor due to the inclusion of various other components necessary to finish the assembly. In many applications it is therefore prudent to consider a calibration for the sensor to ensure that the finished accuracy meets the requirements of the application.

ir-camera-optris-pi-200-230-pi-connect-tire

Interested in a Thermal Imaging Camera for your application?

Contact us on 01628 778688 to discuss further. Alternatively click on the button below and fill out our contact form.

Compare our USB Thermal Imaging Cameras

Compact spot finder Thermal Imaging Camera Xi 80

The newly developed optris Xi 80 thermal camera USB combines the benefits of infrared cameras and infrared thermometers.

A full 80×80 thermal image eliminates the hunt for the hot spot and tedious positioning required with single spot temperature sensors. The integrated spot finder function will identify the hottest (or coldest) spot in the image and automatically communicate these measurements without an external PC.

A wide range of optics including the new 80° lens equips the Xi 80 to collect and analyze temperature information over a wide target area. The affordable pricing for this unit makes it a realistic alternative to replace existing spot temperature sensors or for OEM applications.

Important specifications

  • Small sized rugged camera with motorized focus
  • Distance-to-spot-size ratio up to 190:1
  • Autonomous operation with automatic spot finder

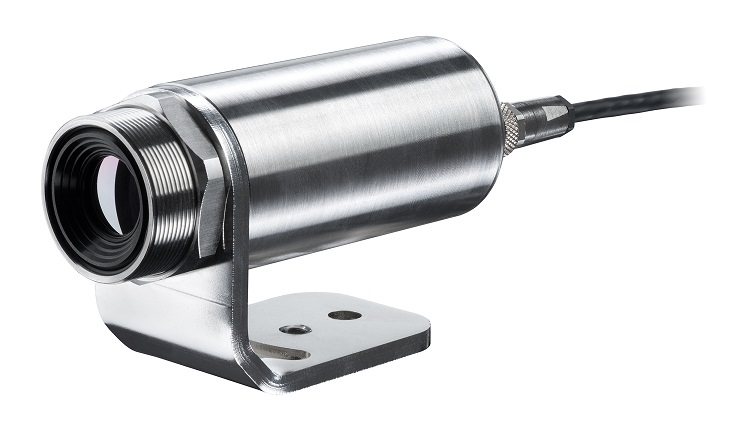

Process parameters XI 80 radiometric camera has a hot spot feature to track temperatures quickly and efficiently.

Compact spot finder

Thermal Imaging Camera Xi 80

Spot finder USB Thermal camera Xi 400

The newly developed optris Xi 400 USB IR camera combines the benefits of a robust, compact pyrometer and an advanced IR camera. The 80 Hz frame rate allows for the monitoring of fast thermal processes, even including a line-scan function. The spot finder IR camera has an optical resolution of 382 x 288 pixels and comes with an extensive ready-to-use package – including a versatile image processing software.

Due to its compact design and affordable pricing, the new optris Xi spot finder IR camera is ideally suited for OEM applications.

Important specifications

  • Motorized focus
  • Suberb distance-to-spot-size ratio up to 390:1
  • Frame rate: 8

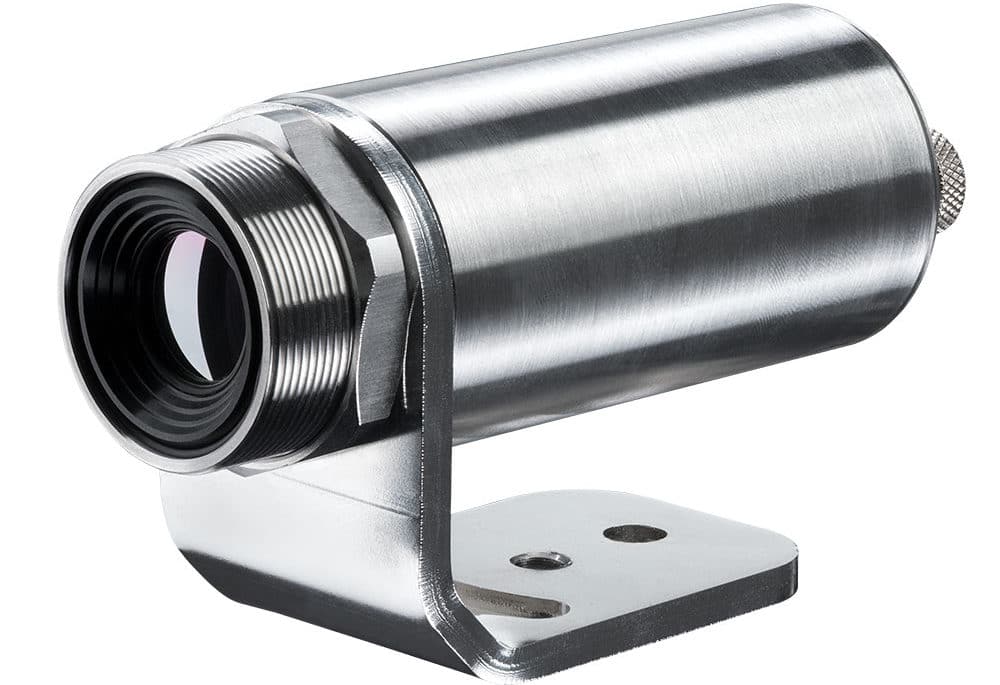

xi-ir-camera

Spot finder USB

Thermal camera Xi 400

Infrared camera optris PI 160

The small optris PI 160 radiometric camera is the basic model of the award-winning optris PI series. It allows for exact measurements from an object size of 1.5 mm on and is, due to its measurement speed of 120 Hz, perfectly suited for employment in research and development, test stations, and process automation as well as for portable measurement tasks. With a suitable adaptor, you could use this as a handheld thermal imaging camera if required.

The thermographic imaging camera standard version offers a temperature range from -20°C up to 900°C, which can be optionally expanded to 1500°C. It is available with four alternative optics and the software optris PIX Connect offers video and snapshot recordings, extensive analyses (offline, online) and is equipped with an integrated line scan camera function.

Important specifications

  • Temperature range: -20 °C to 900 °C
  • Spectral range: 7.5 to 13 µm
  • Frame rate: 120 Hz
  • Software and I/O interface included

Thermal Imaging cameras with Radiometric Calibration are available for different industries and applications.

Infrared camera

optris PI 160

IR camera optris PI 400 / PI 450

The infrared USB thermal camera optris PI 400 / PI 450 are the smallest thermographic cameras in their class. Being equipped with a measurement speed of 80 Hz and an optical thermal resolution of 382 x 288 pixels they provide real-time thermographic images in high speed.

The IR camera PI 450 is, due to its thermal sensitivity of 40 mK, specifically suited for the detection of slightest temperature differences, making it indispensable in quality control of products and in medical prevention.

The compact and high-performance infrared imaging camera offers a temperature range of -20°C up to 900°C, with the model optris PI 400 being optionally upgradeable up to 1,500°C. It can be delivered with exchangeable optics, industrial thermal imager equipment and it comes with an extensive license-free thermography software package.

Important specifications

  • Temperature range: -20°C to 900°C
  • Spectral range: 7.5 to 13 µm
  • Frame rate: 80 Hz
  • Software and I/O interface included

The PI450 thermal camera is suitable for various applications and is popular in the glass industry based in the UK.

IR camera

optris PI 400 / PI 450

Infrared camera optris PI 400 / PI 450

The industrial thermal imaging camera USB optris® PI 640 is the smallest measuring VGA infrared camera worldwide. With an optical resolution of 640×480 pixels, the PI 640 delivers pin-sharp radiometric pictures and videos in real time.

With a body sized 45x56x90 mm and weighing only 320 grams (lens included), the optris® PI 640 counts among the most compact thermal imaging cameras on the market.

It can be delivered with industrial thermal imager equipment and it comes with an extensive license-free thermography professional software package.

Important specifications

  • Temperature range: -20°C to 900°C
  • Spectral range: 7.5 to 13 µm
  • Frame rate: 32Hz
  • Software and I/O interface included

High Resolution Radiometric Cameras where a precise temperature measurement is required. Optris camera available from stock.

Radiometric Camera

optrisPI 640

Short wavelength infrared camera optris PI 1M

The newly developed thermal USB camera UK optris® PI 1M is especially suited for temperature measurements of metals. As they exhibit a distinctly higher emissivity at the short measurement wavelength of 1μm than at measurements in the previously conventional wavelength range of 8-14 μm.

In parallel with the visualisation of a thermal process, the high-performance sensor electronics allow a short reaction time of 1ms for the displaying of the temperature information of the centre pixel.

Important specifications

  • High dynamic CMOS detector with up to 764 x 480 pixels resolution
  • An infrared camera thermal imager with wide measurement ranges from 450 °C to 1800 °C without sub-ranges
  • Up to 1 kHz frame rate for fast processes
  • Real-time analogue output with 1 ms response time
  • Extensive software package and SDK included
  • 1 kHz line-scanning function possible
  • Starting from £ 2820, software and I/O interface included

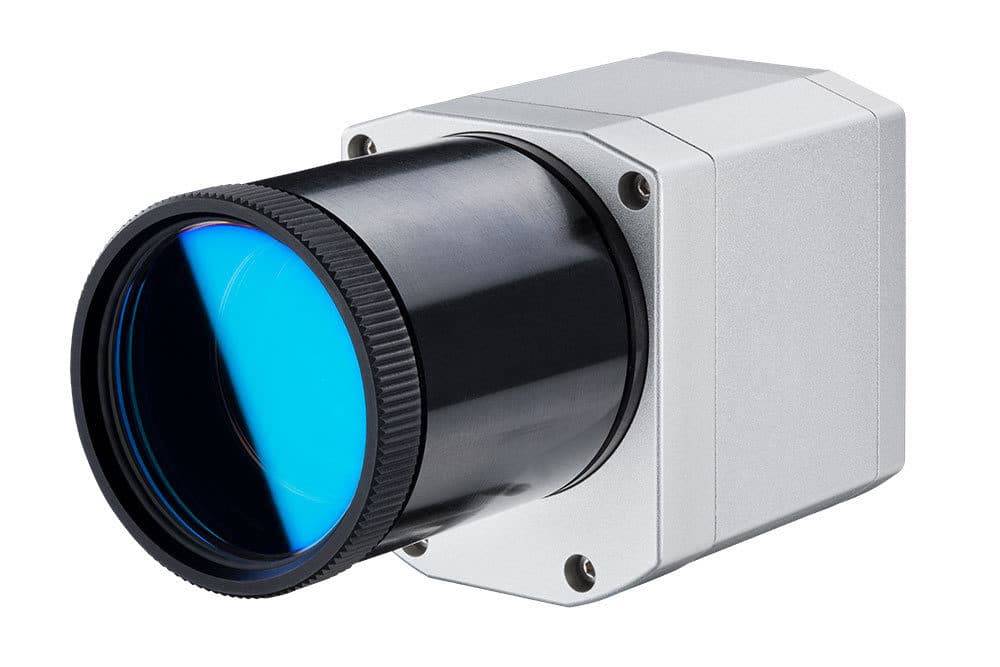

Short wavelength industrial radiometric camera suitable for high temperature metals applications including smelting.

Short wavelength infrared

camera optris PI 1M
