Industrial Pyrometer from Optris

Universal General Purpose

Infrared Temperature Sensors

Digital Pyrometer for non-contact temperature measurement suitable for a braod range of applications.

Infrared Temperature Sensors

for Metals Applications

Innovative pyrometer consists of a stainless steel housing with integrated electronics suitable for measurement of Glass

Infrared Pyrometer Sensor

for Glass Applications

Low cost optical pyrometer available to meet your temperature measurement requirements, avaialble from stock.

IR Temperature Sensors

for Plastics (Thin Film) Applications

Optris CTLaser two piece sensor with dual laser aiming

Infrared Thermometers

for Flame Applications

New video IR temperature pyrometer allow a parallel use of video and crosshair laser aiming from Process Parameters Ltd

Infrared Video Thermometer

Temperature Sensors

Process parameters hand Held Infrared Thermometers

Hand Held Portable

IR Thermometers

Our range of Optris IR pyrometer and digital pyrometer is arranged into three distinct areas…

  • Low cost, highly reliable German-made optical pyrometer suitable for most processes and OEM applications.
  • High ambient sensing head temperature without additional cooling as standard – up to 250°C.
  • Different models designed for specific applications such as plastic films, glass and metals. No more compromising with “general purpose” sensors.
  • Wide temperature measurement range to cover everything from frozen food to molten metals.
  • Industry standard outputs including mA, Voltage and Thermocouple.
  • Optional interfaces to provide easy integration with your application including Profibus, Ethernet, USB and RS485.

  • Unique dual laser aiming system ensures the perfect aim every time. Shows the user both location and size of measuring spot on the object.
  • Wide range of accessories to make integration with your process as simple as possible.
  • Optional interfaces provide easy integration with existing control systems.
  • Special version for specific applications including flame temperatures, through flame measurement, glass and metals.

  • Low-cost temperature pyrometer for general purpose applications.
  • High optical resolution pyrometer temperature sensor for an application that demands higher accuracy and control.
  • Designs for use on high-temperature applications, including molten metals. Ideal for use when wearing gloves.
  • Innovative laser aiming and where necessary aiming scopes ensure the greatest measurement accuracy.

ir-camera-optris-pi-640-pcb

Interested in an Infrared Pyrometer for your application?

Contact us at 01628 778688 to discuss further.

Alternatively click on the button below and fill out our contact form.

Send E-mail

Below are some of our popular Industrial Pyrometers

Optris CSmicro 2W LT / LTH Miniature Infrared Temperature Sensor
Hi Temp infrared pyrometers available for measuring temperature measurement of metals and other high temperature materials.

The CSmicro series of the infrared pyrometer is an evolution of the CS, with a miniature sensing head which is one of the smallest in the world measuring just 14mm OD x 28mm long. The electronics are housed securely in a housing mounted onto the extension cable measuring just 35mm x 12mm which also has an LED useful for giving information about the sensor during use.

With the CSmicro we can offer a wider measuring range of up to 1600°C and also a higher ambient operating temperature for the sensing head of up to 180°C without additional cooling. Combined with high-quality optics giving small spot sizes, the CSmicro is an extremely versatile group of sensors, and are easily configurable using the optional USB interface and Compact Connect software.

The Optris CT LT is an excellent general purpose miniaturised digital pyrometers with programmable electronic box.

The Optris CT LT is an excellent general purpose miniaturised digital pyrometer with programmable electronic box. The IR sensing head is suitable for use at ambient temperatures of up to 180°C without cooling and with a choice of optical resolutions, there is certain to be a version within the range to suit your application.

The temperature pyrometer has the smallest sensing head available in the world at just 14mm diameter x 28mm long and allows the sensor to be installed in the applications where space is at a premium. The separate electronics enclosure provides a full range of configurable outputs as standard including Voltage, mA and Thermocouple. It is also possible to incorporate an interface card which provides simple integration into your existing process control equipment. Options include Ethernet, Profibus, RS485 and USB interface and Compact Connect software. The CT LT is available from stock so we can supply your sensor quickly too!

This high temperature pyrometer offers a wider measuring range of up to 1600°C. The sensing head is rated to up to 180 deg c.

Measuring the temperature of high temperature and molten metals is one of the most demanding applications for and sensor technology. The Optris range of 1m and 2m high-temperature pyrometers has however been designed to overcome the pitfalls often encountered.

Short wavelength sensors ensure that low emissivity materials are handled more easily, providing more accurate measurements that are less dependent on correct or variable emissivity.

High quality, high-resolution optics provide small measuring spots even at larger distances. This allows precise measurement whilst the pyrometer sensor is protected from the arduous conditions within the process.

Unique dual laser aiming system of our high-performance series permits very quick setup and displays on the object the exact location and size of the measuring spot. If this is not enough then our Video Pyrometers provide you with through the lens video aiming to give the most precise setup ever.This high temperature pyrometer offers a wider measuring range of up to 1600°C. The sensing head is rated to up to 180 deg c.

Finally, a broad range of standard and optional process outputs and interfaces allow our sensors to be integrated with almost all existing process control equipment.

New low cost infrared thermal imaging camera is available from stock and is suitable for high temperatures.

The newly developed optris Xi 80 combines the benefits of infrared cameras and infrared pyrometers.

New low cost infrared thermal imaging camera is available from stock and is suitable for high temperatures.A full 80×80 thermal image eliminates the hunt for the hot spot and tedious positioning required with single spot temperature sensors. The integrated spot finder function will identify the hottest (or coldest) spot in the image and automatically communicate these measurements without an external PC.

A wide range of optics including the new 80° lens equips the Xi 80 to collect and analyze temperature information over a wide target area. The affordable pricing for this unit makes it a realistic alternative to replace existing spot temperature sensors or for OEM applications.

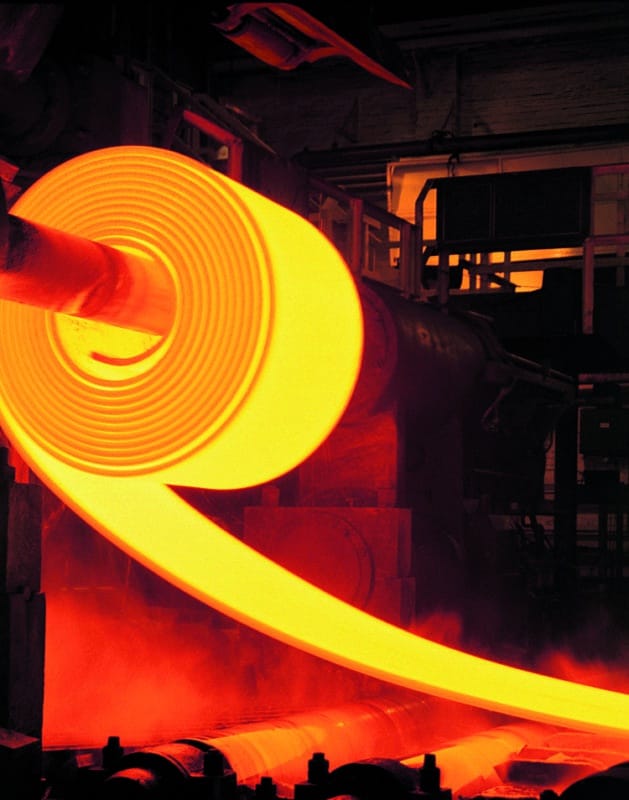

High temperature sheet steel roll

Measuring the temperature of high temperature and molten metals manufacturing is one of the most demanding applications for and sensor technology. The Optris range of 1m and 2m high-temperature pyrometers has however been designed to overcome the pitfalls often encountered in molten metal furnaces.

Short wavelength sensors ensure that low emissivity materials are handled more easily, providing more accurate measurements that are less dependent on correct or variable emissivity.

High quality, high-resolution optics provide small measuring spots even at larger distances. This allows precise measurement whilst the pyrometer sensor is protected from the arduous conditions within the process.

Unique dual laser aiming system of our high-performance series permits very quick setup and displays on the object the exact location and size of the measuring spot. If this is not enough then our Video Pyrometers provide you with through the lens video aiming to give the most precise setup ever.Optris CTlaser 05M Infrared Temperature Sensor for Molten Metals

Finally, a broad range of standard and optional process output and interfaces allow our sensors to be integrated with almost all existing process control equipment.

Optris CT Hot for high ambient temperature to 250°C

Due to its special spectral range of 5.0 µm, the pyrometer optris CT G5 is perfectly suited for the measurement of glass temperatures, e.g. during container glass production, vehicle glass production or solar cell production.

The IR thermometer’s stainless steel measuring head is extremely small and can be employed in ambient temperatures of up to 85 °C without additional cooling. A multi-installation of the pyrometers, e.g. in series as line scanner, is therefore cost-efficient and can be performed even in limited spaces.

  • Temperature range:
    100 °C to 1,650 °C
  • Spectral range: 5.0 µm
  • Response time: 80 ms (G5H), 120 ms (G5L)

What is an Industrial Pyrometer?

An industrial pyrometer is a device used to measure the temperature of objects in industrial settings. It uses the principle of infrared radiation to determine the object’s temperature without direct contact. The pyrometer consists of a sensor that detects and converts the emitted infrared radiation into an electrical signal, which is then processed to calculate the temperature.

In simple terms, imagine you have a tool that can “see” the heat coming from an object without actually touching it. That’s what an industrial pyrometer does. It’s like a special thermometer that uses invisible heat waves to tell you how hot something is. It’s commonly used in industries like manufacturing, metalworking, and glassmaking, where precise temperature control is crucial for ensuring product quality and safety.

For example, in a steel factory, an industrial pyrometer sensor can measure the temperature of molten metal to ensure it’s at the right temperature for shaping and processing. It helps operators monitor and adjust the heat levels in various industrial processes, preventing overheating or underheating, and ultimately improving efficiency and product consistency.
