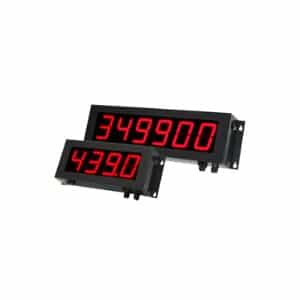

Nokeval Large Digit LED Process Displays
Process Parameters is proud to offer the Nokeval range of Large Digit LED Process Displays. With digit sizes from 57mm to 200mm and visibility distances of up to 100 metres we are sure to have a version to suit your location.
A wide variety of options are available primarily based around the choice of process input. For example all standard temperature and process inputs are available including RTD, Thermocouple, mA and voltage. Alongside this we offer inputs to suit strain gauge sensors, pulse frequency inputs, RS485/RS232 and also clock/timer versions.
For more information please do not hesitate to contact us.
575F5
575F5 is wall mounted large field display, with five 57 mm high digits. The device can be configured as the customer needs depending on the model. The 575F5 is available as 24VDC model or a 230VAC model.
The device can be ordered or equipped later with 2000 series output card, 2 or 3 alarm relay card, serial data card or I/O card depending on the model. Normally the device is one channel, but in two channel models 575F5-2212 and 575F5-2251 there are two input cards which if desired can calculate mathematical function between two channels such as average. All versions in the range are IP65.
FD100
The FD100 series includes 4 and 6 digit models. Digit size is 100mm. The displays are based on input cards of the panel meter series 2000 giving over 100 combinations. The unit has a wide power supply range of 41…265 VAC or 20…28 VAC/VDC depending on the model. Visibility up to 50 metres. This display can also be used outdoors.
FD200
The FD200 series include 4 and 6 digit models. Digit size is 200mm. The displays are based on input cards of the panel meter series 2000 giving over 100 combinations. The unit has a wide power supply range of 41…265 VAC. Visibility up to 100 metres, may also be used outdoors.
Data Sheet575F5 Models
| Type | Use | Input |
| 575F5-2012 | process | mA, V, Ohm |
| 575F5-2212 | 2 channel process | 2x mA, Ohm, V |
| 575F5-2021 | temperature, process | Pt100, Thermocouples, Pt1000, Ni100, Ir 140, Ir 440, Ohm, mV, V, mA |
| 575F5-2026 | counter | V, mV, mA |
| 575F5-2028 | changing speed | mA, mV, Ohm |
| 575F5-2041 | weighing | Strain gauge sensors |
| 575F5-2051 | pulse frequency | Namur, NPN, Pickup, Pulse sensors, Closing contact |
| 575F5-2251 | 2x pulse frequency | 2x Namur, NPN, Pickup, Pulse sensors, Closing contact |
| 575F5-2061 | pulse counter | Namur, NPN, Pickup, Pulse sensors, Closing contact |
| 575F5-2064 | incremental | Incremental sensors |
| 575F5-2066 | timer | |
| 575F5-2067 | clock | |
| 575F5-2071 | serial data | RS-485 or RS-232 |
| 575F5-2072 | serial data 10 ch | RS-485 or RS-232 |
| 575F5-2081 | BCD, Binary, Greycode | BCD, Binary, Greycode |
FD100 Models
| Type | Use | Input |
| FD100A4-2012 | process | 0/4-20 mA, Ohm, 0-10 V |
| FD100A4-2021 | temperature, process | 0/4-20 mA, 0-10 V, potentiometer |
| FD100A4-2041 | weighing | 4 or 6 conductors |
| FD100A4-2051 | speed for pulse sensors | PNP, NPN, Namur, TTL, touch |
| FD100A4-2061ME | adding pulse counter | PNP, NPN, Namur, TTL, touch |
| FD100A4-2071 | serial data | RS-485 or RS232 |
| FD100A4-Visor | protective cover for a display | |
| FD100A6-2012 | process | 0/4-20 mA, Ohm, 0-10 V |
| FD100A6-2061 | counter for pulse sensor | PNP, NPN, Namur, TTL, touch |
FD200 Models
| Type | Use | Input |
| FD200A4-2012 | process | 0/4-20 mA, Ohm, 0-10 V |
| FD200A4-2021 | temperature, process | 0/4-20 mA, 0-10 V, potentiometer |
| FD200A4-2041 | weighing | 4 or 6 conductors |
| FD200A4-2051 | speed for pulse sensors | PNP, NPN, Namur, TTL, touch |
| FD200A4-2061ME | adding pulse counter | PNP, NPN, Namur, TTL, touch |
| FD200A4-2071 | serial data | RS-485 or RS232 |
| FD200A4-Visor | protective cover for a display | |
| FD200A6-2012 | process | 0/4-20 mA, Ohm, 0-10 V |
| FD200A6-2061 | counter for pulse sensor | PNP, NPN, Namur, TTL, touch |
