Pyrometer or IR Camera?

Pyrometer or IR Camera? The Xi series is a fusion of a rugged, compact pyrometer and a modern IR camera. Thanks to analog and digital outputs as well as the option to process up to nine freely definable measuring areas using an external process interface, the Xi camera is perfectly suited for OEM applications.

An all-rounder for numerous application
From plastics to metal processing, in the automotive sector as well as in fire prevention tasks; the Xi series masters various applications. Even processes with limited visual access can easily be monitored with the help of the line scan function.

Integrated spot finder function
The integrated spot finder function allows for the precise temperature measurements of moving objects – without having to readjust the sensor. The camera figures it out on its own, without being connected to a PC.

Motor focus simplifies handling
Both Xi models are equipped with a motorized focus. The free PIX Connect software enables a remote focusing from the distance.

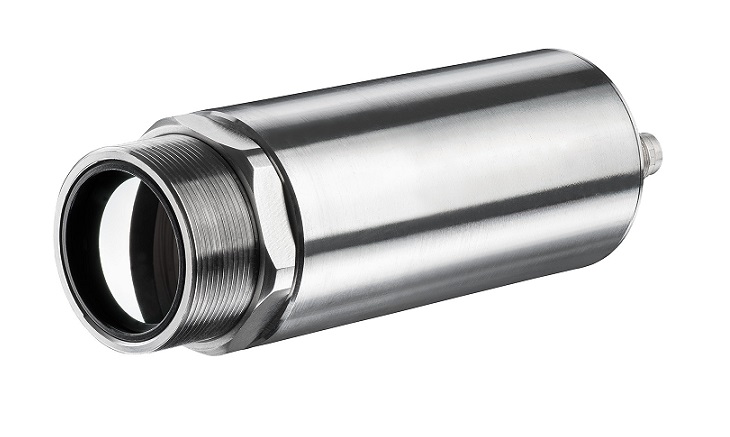

Model: Xi 80 – Type: IR

(Optical Resolution 80 x 80 pixels)

Industrial imager with 80 x 80 pixels for exact temperature measurement of -20 °C to 900 °C. Superb distance-to-spot-size ratio up to 190:1 with sighting capabilities. Autonomous operation with automatic spot finder and direct analog output – ideal for OEM use.

Xi 80: Compact spot finder IR camera

  • Industrial imager with 80 x 80 pixels resolution
  • Rugged, compact Imager with motor focus
  • Autonomous operation with automatic spot finder

Model: Xi 400 – Type: IR

(Optical Resolution 382 x 288 pixels)

Industrial imager with 382 x 288 pixels for exact temperature measurement of -20 °C … 900 °C Superb distance-to-spot-size ratio up to 390:1 with sighting capabilities. 80 Hz frame rate for monitoring of fast thermal processes.

optris Xi 400: Compact industrial imager

  • Industrial imager with 382 x 288 pixels resolution
  • Distance-to-spot-size ratio up to 390:1
  • Monitoring of fast processes with framerate of 80 Hz
