Temperature & Humidity Data Logger GFX-2+

High Accuracy Temperature & Humidity Data Logger EL-GFX-2+

£129.95

SKU: EL-GFX-2+ Categories: Temperature & Humidity, USB Data loggers

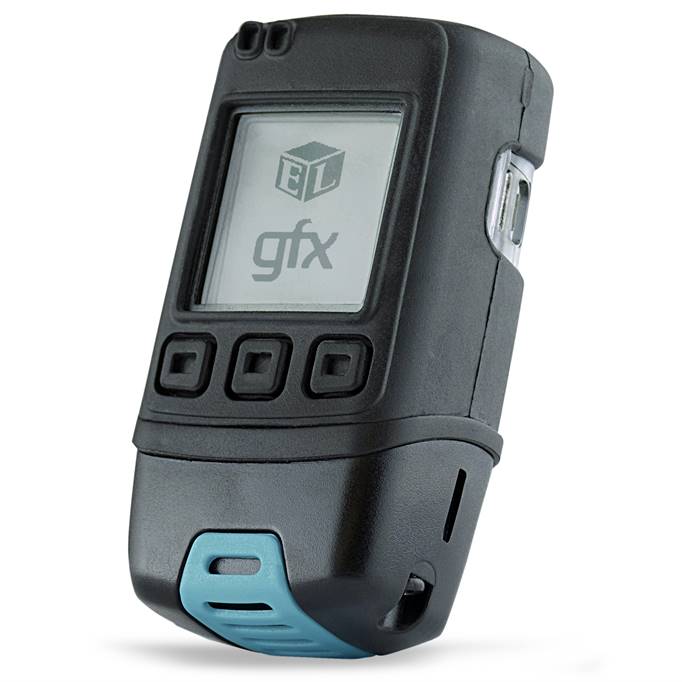

High Accuracy Temp & RH Data Logger with Graphic Screen and Audible Alarm (EL-GFX-2+)

This USB high accuracy temperature humidity data logger records over 250,000 temperature and relative humidity readings in one or more sessions for up to 1 year. It has user-programmable audible alarm thresholds with highly visible confidence/alarm LEDs. Inside the rugged IP67 / NEMA 4X case, buttons for start, stop and restart and a graphic LCD with on-screen menus provide real-time analysis of data, as a summary or as a graph. The EL-WIN-USB software enables quick configuration and data download via the USB port. Supplied with two batteries, USB cover, mounting clip and micro USB cable.

In addition to data loggers, Process Parameters offer an extensive range of custom built temperature sensors (Thermocouples, PT100’s) manufactured to your requirements. Also available are infrared sensors and Thermal Imaging Cameras.

Please feel free to contact us for further information. Tel: 01628 778688.

Application Information

The EL-GFX-2+ is suitable for a wide variety of applications. These include:

Transportation
Food & Drink
Building & Site Monitoring
HVAC
Pharmaceutical Fridge Monitoring

General Specification

Temperature Measurement range: -30°C to 80°C (-22°F to 176°F)
Internal resolution: 0.1°C (0.1°F)
Accuracy (overall error) ± 0.25°C (0.41°F) typical (5 to 60°C)
Long term stability: <0.02°C (0.04°F) / year
Relative Humidity Measurement range: 0 to 100%RH
Internal resolution: 0.1%RH
Accuracy (overall error): ± 1.85%RH typical (10 to 90%RH)
Long term stability: <0.25%RH / year
Logging rate: User selectable between 10 seconds and 1 hour
