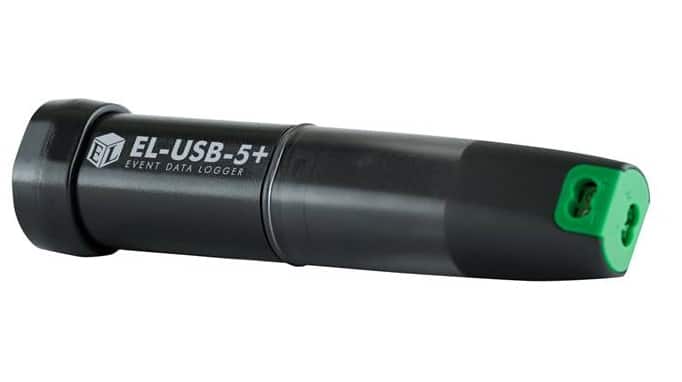

Event, Count and State Data Logger EL-USB-5+

£62.95

Our standalone event, count, state data logger can record over 1,000,000 events, state changes and count events. Fast logging rates allow event capturing at speeds of up to four times per second and state changes at speeds of up to two times per second.

Categories: , SKU: EL-USB-5+

Description

Event, Count and State Data Logger with USB – EL-USB-5+

Our standalone event, count, state data logger can record over 1,000,000 events, state changes and count events. Fast logging rates allow event capturing at speeds of up to four times per second and state changes at speeds of up to two times per second. Event counting can operate at speeds of up to 100 times per second (when the LED’s are turned off). The data logger is supplied with a cap, featuring a pair of screw terminals and measurement leads. These are terminating in crocodile clips. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port, using the free software provided. Data can then be graphed, printed and exported to other applications. Supplied with ½AA battery and wall mount clip.

In addition to data loggers, Process Parameters offer an extensive range of custom built temperature sensors. (Thermocouples, PT100’s) These are manufactured to meet your requirements. Also available are infrared sensors and Thermal Imaging Cameras.

Please feel free to contact us for further information. Tel: 01628 778688.

Application Information

The EL-USB-5+ is suitable for a wide variety of applications. These include:

  • Industrial
  • Energy

General Specification

Maximum Event / State Change Frequency: 2Hz
Maximum Count / Count Per Frequency: 100Hz
Minimum time in State: 100ms
Input Voltage Range: 3 to 28V d.c.
Battery Life: 1 Year
