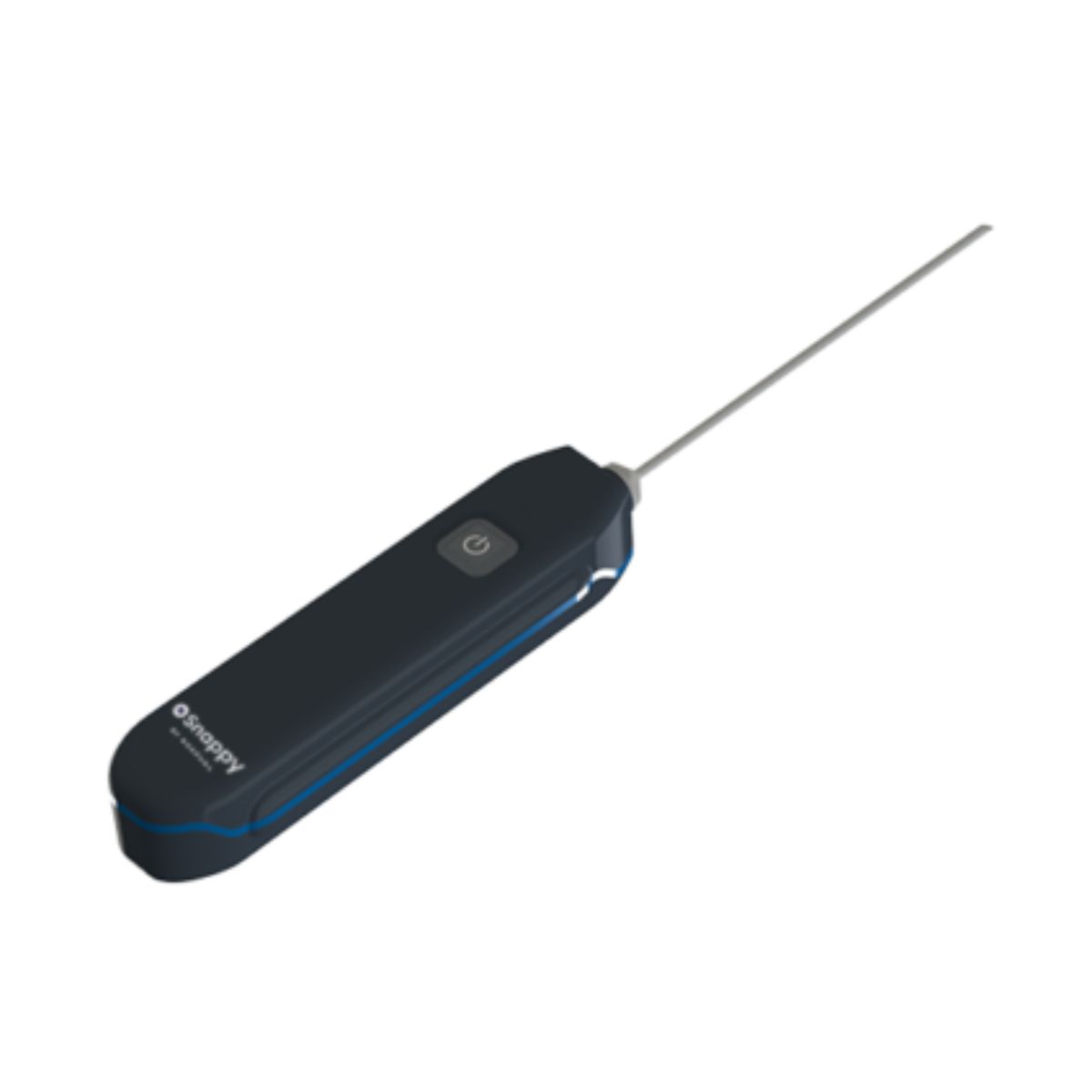

NSnappy Sense LWEU Food Thermometer Sensor Probe

Wireless Professional Catering Food Temperature Sensor

The NSnappy Sense is a wireless spike thermometer designed for accurately measuring the internal temperature of food products. It is food-safe, reliable, and automatically transmits measurement data via LoRaWAN radio connection to the NSnappy service.

The device operates with a battery for over a year under normal use and is covered by the NSure ongoing warranty for IoT measuring devices, including regular calibration and battery replacement.

Key benefits include:

• The thin and durable spike sensor gives a fast response time
• Automatic transmission of measurement data
• Easy to use
• Food safe
• Measuring spike made of stainless steel
• Easy to keep clean
• No mobile app or Bluetooth required
• Works with all devices with an internet connection and access to the NSnappy service via a browser
• Ideal for commercial kitchens, industry and food safety

Specifications of The Catering Thermometer

Environment

• Storage: -40…+60°C, relative humidity 5-95%, non-condensing
• Operating conditions: -20…+45°C, relative humidity 0-100%
• Protection class: IP65
• Case material: PC+ABS (Bayblend® T88-4N)

Dimensions

• Dimensions: 224 x 28 x 23 mm

Temperature Sensor Measurement

• Sensor: Length 80 mm, diameter 2 mm, hollow, stainless steel, sharp tip
• Sensor: Pt100 sensor element inside the sensor tip
• Measuring range: -50…+200°C (Pt100 theoretical, linear range -200…+600°C)
• Accuracy: ±0.5 °C in the range -30…+100 °C, when the device temperature is stable between +5…+45°C
• Measuring time: About 5 seconds

Radio Connection

• Description: LoRaWAN standard, EU 868 MHz frequency range
• Transmitter module: Murata ABZ-093 LoRaWAN modem
• Antenna: Internal
• Compatibility: A device with a LoRaWAN radio connection needs an NSnappy® Hub LoRaWAN base station and the NSnappy® platform service to work
• Frequency: 863-870 MHz (LoRaWAN 1.0.2 EU band)
• Current: Max +14 dBm ERP
• Range: Depends on the environment, indoors: hundreds of meters in good conditions, outdoors: line of sight up to 10 km

Power Supply

• Type: 3.6 V lithium thionyl chloride primary battery, not user replaceable
• Battery life: At least one year when used 20 min/day

Applications and Uses for the Food Temperature Probe

The NSnappy Sense food temperature probe is suitable for a wide range of applications, including food production, catering, and food service industries. Its uses include monitoring the internal temperatures of various food products to ensure compliance with safety and quality standards, thereby contributing to food safety and customer satisfaction.
