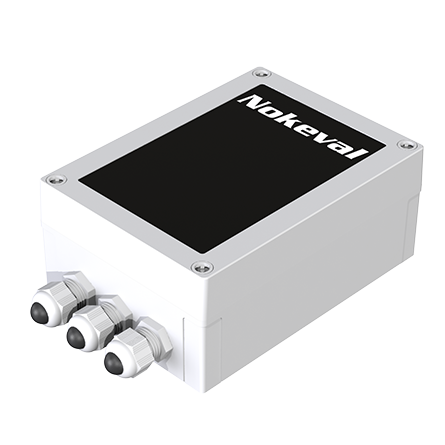

Multipurpose Wi-Fi Device with Two mA or V Inputs
Solid Sky 2Pro stands out as a versatile wireless device that offers ease of installation and setup, along with an impressive radio range. It comes equipped with robust batteries, and if needed, you have the option to connect an external power source.
With Solid Sky, you have the capability to intermittently provide power to two two-wire 4-20 mA transmitters, even when the device is solely relying on its internal batteries. For those requiring more inputs, the Solid-Sky-2Pro version provides two mA or V inputs.
Solid Sky is engineered to meet industrial conditions and excels in long-range applications. Its straightforward installation and implementation make it a user-friendly choice. Utilising Semtech LoRa technology, Solid Sky offers exceptional radio coverage for wireless battery-operated devices.
Features and Specifications
The enclosure is constructed from light grey polycarbonate plastic and offers environmental protection with an IP65 rating. Its weight, inclusive of batteries, is approximately 850 grams. The device measures 130 mm x 180 mm x 75 mm (WHD) without the pole mounting kit.
The device is designed to operate reliably within a rated temperature range of -40 to +60°C and can function effectively in humidity levels ranging from 0 to 100% relative humidity. Storage is permissible within the temperature range of -40 to +60°C without the risk of condensation.
The device is powered by 4 LR14 (C size 1.5 V alkaline) batteries and allows for an adjustable measuring interval, ranging from 5 to 7200 seconds, with a default setting of 1800 seconds (30 minutes).
It features 2 process inputs (mA/V) and offers data transfer options, including sending data once (default), twice, or thrice, with bidirectional communication for acknowledgments and retransmissions. It also includes a data buffer capable of storing up to 400 packets of data.
