Compact Temperature Transmitter PPL21-TX

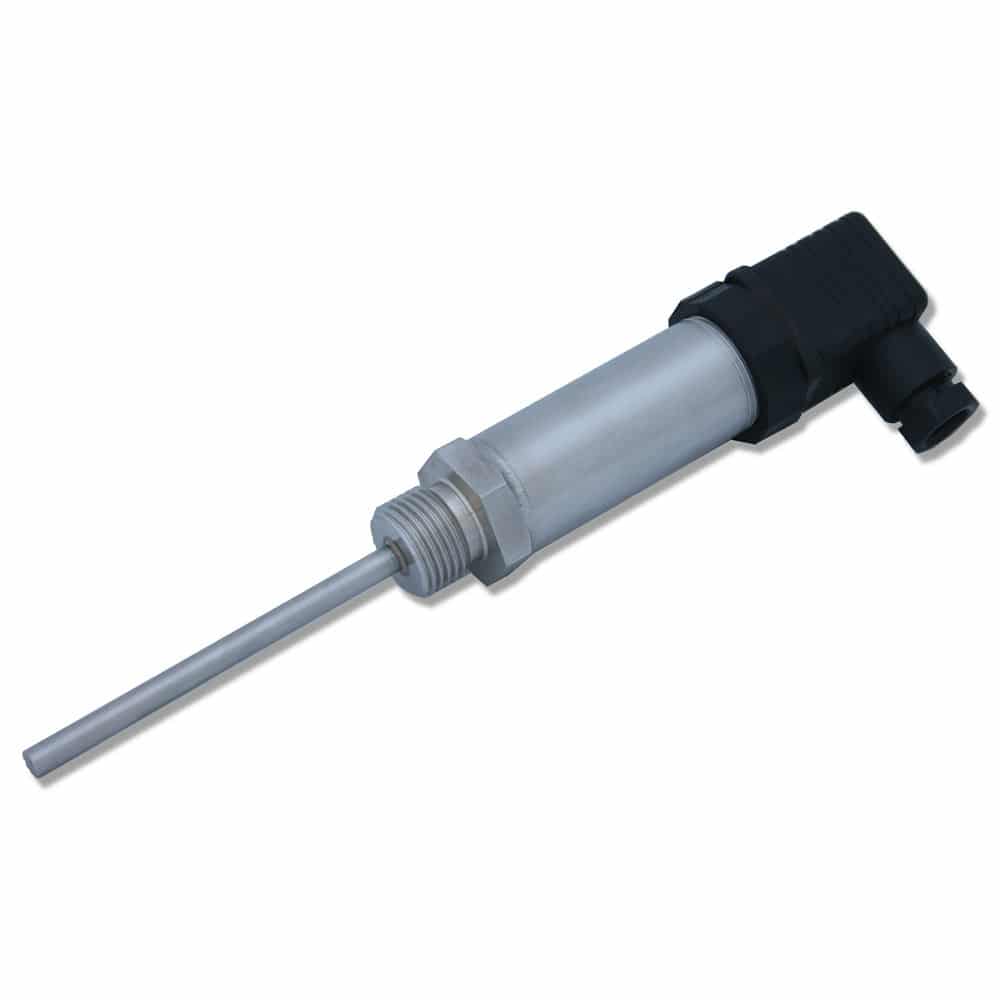

The PPL21-TX temperature sensor has a plain stem plus a fixed male process connection thread below the transmitter body. The custom-built compact temperature transmitter with process thread is ideal for use in food, beverage and dairy industries.
Technical Details
- Welded Process Connection for Easy Installation
- Ideal for use in Food, Beverage & Dairy Industries
- Choice of Stainless Steel Sheath & Body Sizes
- IP65 or IP67 Connector Options
- UKAS or Traceable Calibration Available
- Sensor Type: Platinum Resistance Thermometer—Pt100, 3 wire
- Output: 4-20mA, 2 wire
- Power Supply: 10-30V d.c. Loop Powered
- Sensor Tolerance Band: Class B, Class A, 1/3 DIN, 1/5 DIN or 1/10 DIN
- Operating Range of Sensor: 0 to +100°C
- Ambient Temperature: 0 to +70°C
- Accuracy: ±0.1°C ±0.05% of Reading
- Sheath Material: 316 stainless steel
- Connector A—DIN43650 IP65, B—M12 IP67
Prices from £125.00
Compact Temperature Transmitter with Process Thread
The compact temperature transmitter with process thread is a highly convenient device designed for easy installation. It features a welded process connection, making it simple to set up. With a 4-20mA output that is loop-powered, the temperature transmitter provides accurate temperature readings.
The temperature sensing capability of the device is based on a platinum resistance thermometer, specifically a Pt100 with 3 wire configuration. The sensor tolerance band options include Class B, Class A, 1/3 DIN, 1/5 DIN, or 1/10 DIN, providing flexibility in terms of accuracy requirements.
The sensor itself can operate within a temperature range of 0 to +100°C. For ambient conditions, the device can handle temperatures from 0 to +70°C. The accuracy of the temperature readings is within ±0.1°C or ±0.05% of the reading, ensuring precise measurements.
The complete stem of the probe and housing is made from 316 stainless steel and is TIG welded closed to give a high-quality single piece product. However, the transmitter offers a variety of options, including different sizes of stainless steel sheaths and bodies should you have specific requirements for your application.
Many metric and imperial probe diameters are available from 3mm upwards, however, we recommend a diameter of 4.5mm upwards to provide sufficient support to the housing.
Thread types are supplied as per our customer’s requirements and are generally BSP, BSPT or NPT types but we can also supply others such as Metric threads, UNF, UNC etc.
Additionally, you can choose between IP65 or IP67 connector options, providing flexibility for various environments. It’s also possible to opt for UKAS or Traceable Calibration, ensuring reliable and certified measurements.
Applications
The PPL21-TX temperature transmitter has a clean and straightforward design. This enhances its usability and is particularly well-suited for applications in the food, beverage, and dairy industries.
The custom-built compact temperature transmitter with process thread is also suitable for the measurement of liquids and gases across a wide temperature range.
Read More: What is a Temperature Transmitter?
Additional Information
The PPL21-TX temperature transmitter is ideal for use with compression fittings or our PPL51-TW pocket making them easy to install in your process.
We also offer a comprehensive calibration service and a wide choice of accessories to suit your application.
Our PPL2-TX temperature sensor is made to order based on your process. If you’d like more information, please contact us for a free quote.
Call us at 01628 778788 or email sales@processparameters.co.uk
