Compact Temperature Transmitter PPL22-TX

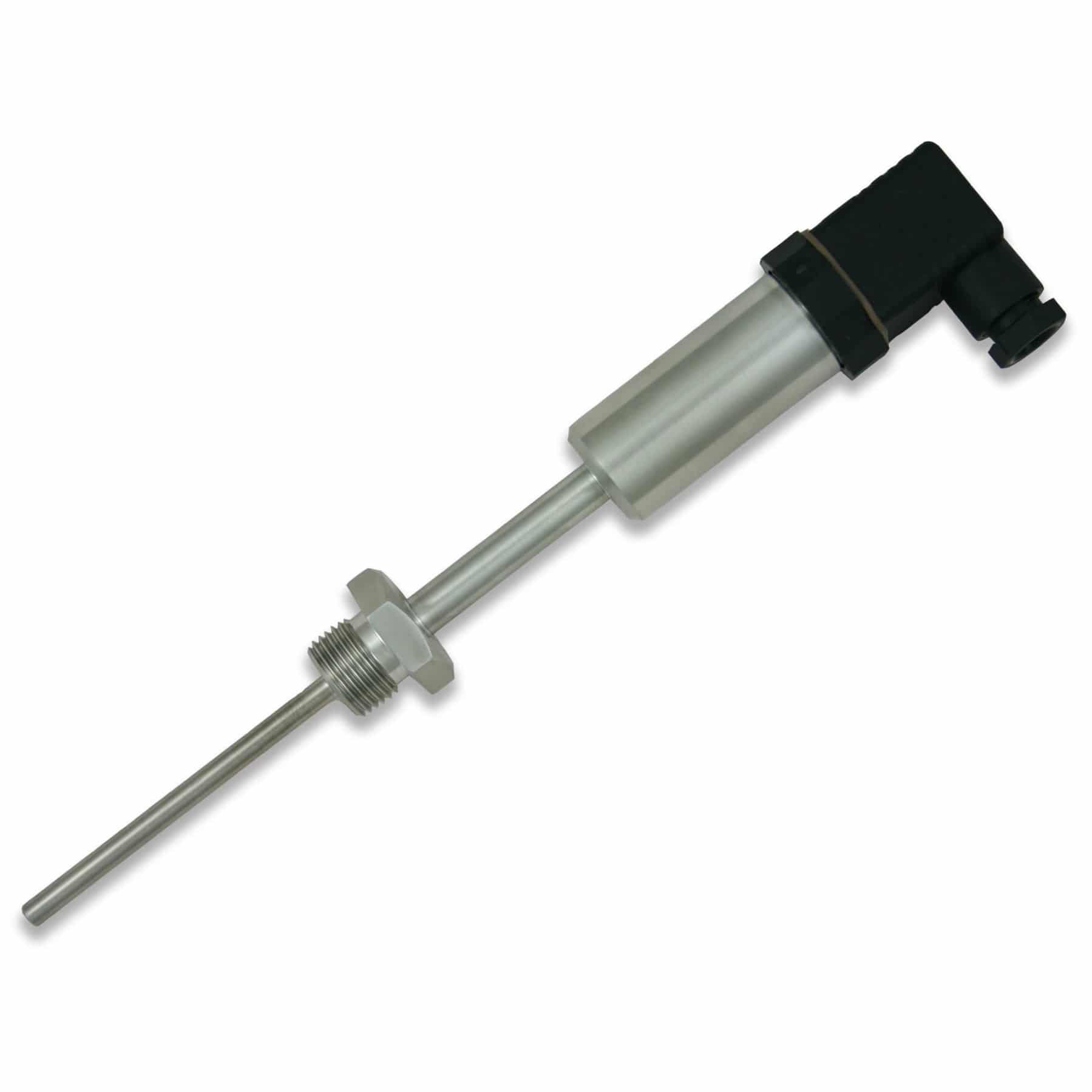

Our PPL22-TX temperature sensor has a plain stem with a fixed male process connection thread below the transmitter body. The addition of a cooling neck allows the probe to be used in higher-temperature applications whilst protecting the electronics in the housing.
Technical Details
- Compact Temperature Transmitter with Lagging Extension
- Operating Temperature Range: -50 to +250°C
- 4-20mA Output
- Clean Simple Design
- Ideal for use in Food, Beverage & Dairy Industries
- Choice of Stainless Steel Sheath & Body Sizes
- IP65 or IP67 Connector Options
- UKAS or Traceable Calibration Available
Prices from £140.00
Compact Temperature Transmitter with Lagging Extension
The compact temperature transmitter with a lagging extension offers reliable temperature measurement. The operating range of the sensor is from -50 to +250°C, while the ambient temperature range is 0 to +70°C. It provides a 4-20mA output and features a clean and simple design. This transmitter is well-suited for applications in the food, beverage, and dairy industries.
The temperature sensor offers a choice of stainless steel sheath and body sizes, along with IP65 or IP67 connector options. Calibration options include UKAS or traceable calibration. The transmitter utilises a platinum resistance thermometer (Pt100, 3 wire) as the sensor type and operates on a 4-20mA, 2-wire output.
The power supply required for operation is 10-30V DC, loop-powered. The compact transmitter offers sensor tolerance band options such as Class B, Class A, 1/3 DIN, 1/5 DIN, or 1/10 DIN.
The transmitter ensures accuracy within ±0.25% and is constructed with a 316 stainless steel sheath material. It is available with connector options: A—DIN43650 IP65 or B—M12 IP67.
Specifications
- Sensor Type: Platinum Resistance Thermometer—Pt100, 3 wire
- Output: 4-20mA, 2 wire
- Power Supply: 10-30V d.c. Loop Powered
- Sensor Tolerance Band: Class B, Class A, 1/3 DIN, 1/5 DIN or 1/10 DIN
- Operating Range of Sensor: -50 to +250°C
- Ambient Temperature: 0 to +70°C
- Accuracy: ±0.25%
- Sheath Material: 316 stainless steel
- Connector: A—DIN43650 IP65, B—M12 IP67
Additional Information
The PPL22-TX is part of our PPL20 series of sensors. These compact temperature transmitters are evolutions of traditional temperature probe designs. They are designed to offer the end-user a compact design that is easy to use and maintain. The PPL22 is for higher temperatures compared to the PPL21.
The PPL22-TX is ideal for use with compression fittings or our PPL51-TW pocket making them easy to install in your process.
We offer a comprehensive temperature sensor calibration service and a wide choice of accessories.
Our PPL22-TX temperature sensor is made to order based on your process. If you’d like more information, please contact us for a quote.
Call us at 01628 778788 or email sales@processparameters.co.uk.
What is a Compact Temperature Transmitter?
A compact temperature transmitter is a small-sized device used for measuring and transmitting temperature data in industrial applications. It is designed to provide accurate temperature measurements while occupying minimal space. Compact temperature transmitters typically feature a streamlined design and offer various output options for seamless integration into control systems or data acquisition devices.Related products
