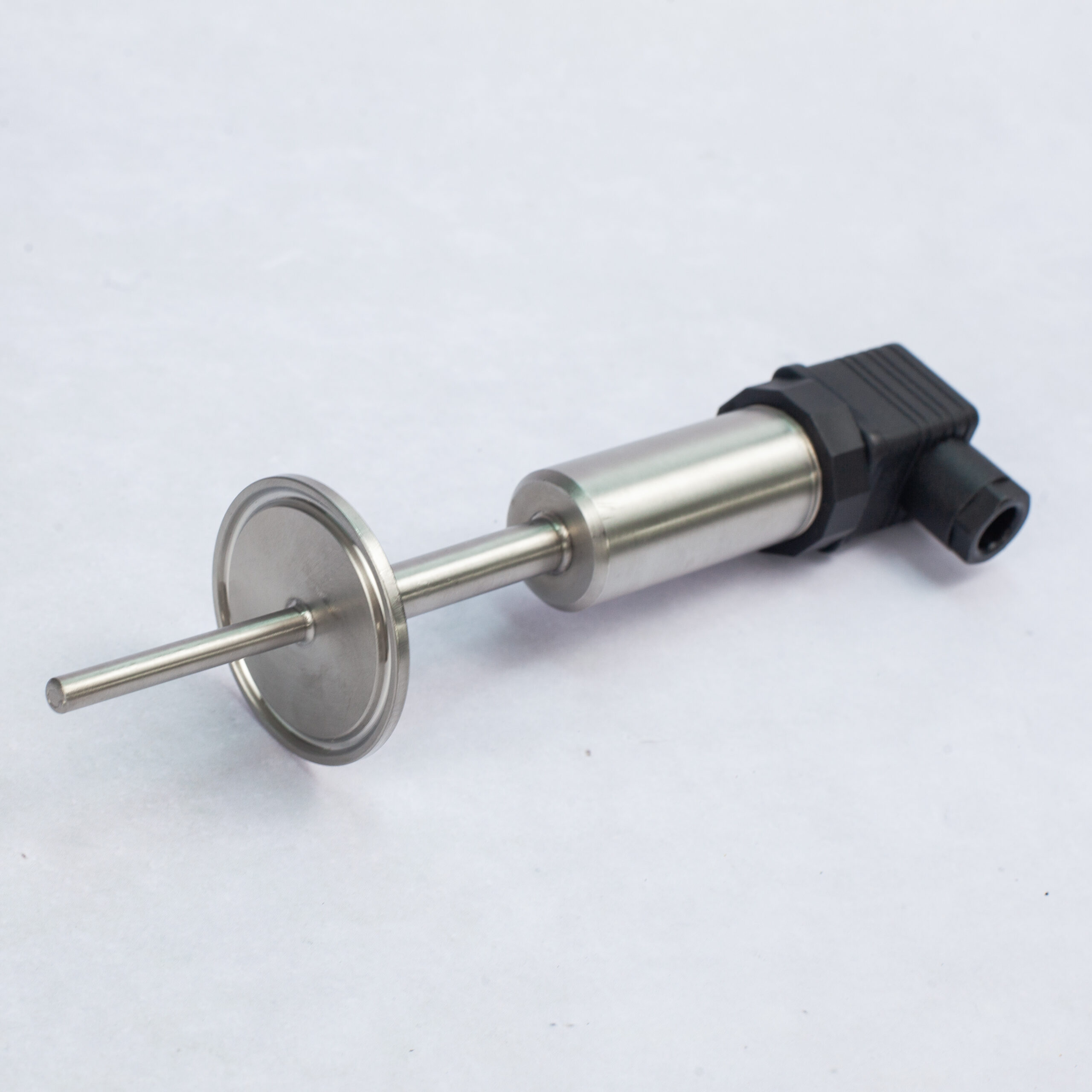

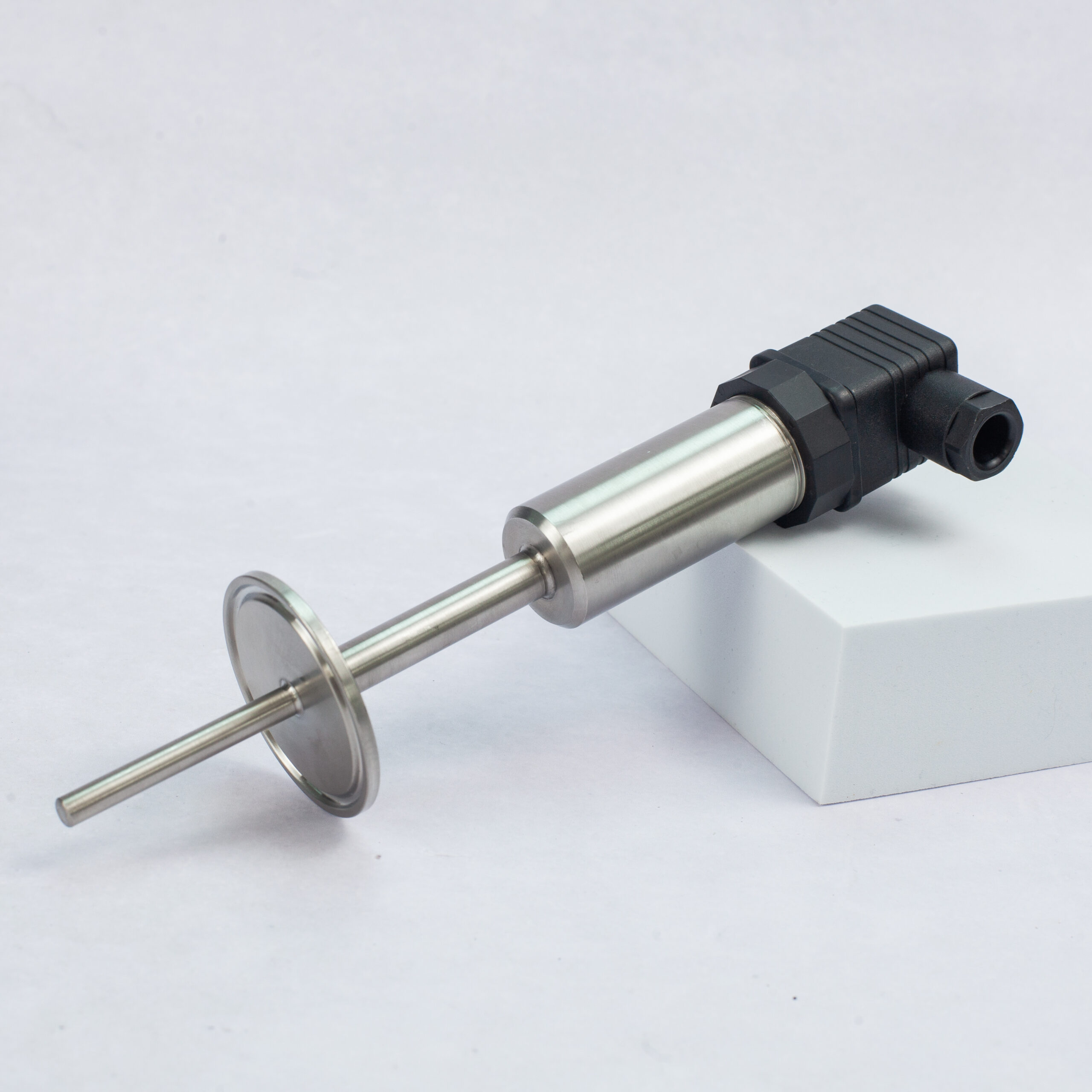

Compact Temperature Transmitter with Plain Stem
Our PPL20 series of sensors are evolutions of the traditional temperature probe designs. They are designed to offer the end user a compact design that is easy to use and maintain. The sensor is built around a single-piece fabricated stainless steel housing which houses both the sensor and transmitter board.
Interface the compact temperature sensor with the unit via an industry-standard DIN43650 or M12 connector. The clean lines and superb build quality make it ideal for use in applications where hygiene is important. Traditional terminal heads are clumsy and offer lots of potential dirt traps. Our PPL20 series of compact temperature sensors avoid this.
The PPL20-TX temperature sensor is the simplest in the PPL20 range and has a plain stem below the transmitter body.
The complete stem of the probe and housing is made from 316 stainless steel and is TIG welded closed to give a high-quality single-piece product. Many metric and imperial probe diameters are available from 3mm upwards, however, we recommend a diameter of 4.5mm upwards to provide sufficient support to the housing.
Built-in is a 4-20mA output temperature transmitter that is loop-powered. We can configure the unit to any temperature range you require, or we can supply a USB interface and PC software that makes this easy on-site.
Applications
The compact temperature transmitter with a plain stem is ideal for use in the food, beverage and dairy industries. The transmitter is also suitable for the measurement of liquids, and gases across a wide temperature range.
Additional Information
The PPL20-TX is ideal for use with compression fittings or our PPL50-TW pocket making them easy to install in your process. All of our temperature sensors are made to order so it is generally possible to meet all of your requirements. If you have any questions or would like a quote, please contact our engineers.
What is a Compact Temperature Transmitter with a Plain Stem?
A compact temperature transmitter with a plain stem refers to a device used for measuring and transmitting temperature readings. It features a compact design, making it suitable for space-constrained installations. The transmitter is equipped with a plain stem, which provides a simple and straightforward means of connecting the sensor to the process or application.
