Infrared IR Camera for Early Fire Detection & Condition Monitoring with Outdoor Housing

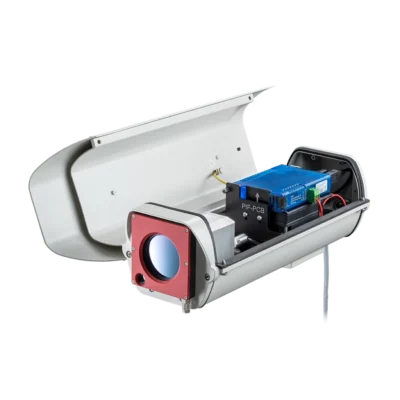

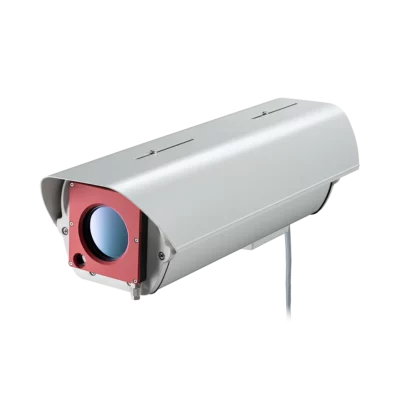

The PI 450i CM package integrates a PI 450i thermal imager, HD visible light camera, and USB server pre-installed in an IP66 rated outdoor protective housing. The included wall mount completes the all-in-one condition monitoring solution.
The rugged housing features an integrated heating and cooling system, allowing operation from -40°C to 60°C without impacting measurement accuracy.

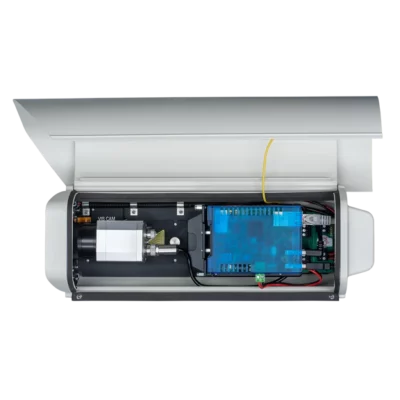

Inside, the 382 x 288 pixel PI 450i camcorder provides sharp thermal images with a 27 Hz frame rate. With an excellent thermal sensitivity of 40 mK, it detects the smallest temperature differences.
Supplementing the infrared capabilities, the 1280 x 720 pixel visible light camera records sharp 30 fps video with a 65° field of view. Together, the thermal and visual cameras create an integrated package for 24/7 condition monitoring and early fire detection.
The complete PI 450i CM IR camera system enables reliable combined thermal-visible imaging for continuous environmental oversight even in the harshest industrial environments and temperature extremes.
Features
- Dedicated product package for outdoor condition monitoring and fire detection
- Environmental rating IP66 and an integrated air purge ensure reliable 24/7 operation under harsh conditions
- Built-in heater/ fan for an extra wide operating temperature range of – 40 °C up to 60 °C
- IR camera with 382 x 288 px and HD video camera with 1280 x 720 px
- USB Server HT (PoE) for easy integration of both camera streams (IR + VIS) in video management systems
Specifications
Specifications for Outdoor Protective Housing:
- Environmental rating: IP66
- Operating temperature range: -40 °C to 60 °C
- Heating: PTC heater (activates automatically at T < 15 °C) / Fan for even temperature distribution
- Power supply: 24 V DC (or PoE)
- Power: 70 W
- Current draw: 3A (short term: 6 A)
- Air purge collar: Integrated
- Air pressure: Absolute pressure 1.1 bar at 20 – 100 l/min
- Material: Aluminum
- Weight: 2 kg / 2.5 kg with wall mount bracket
- Max. FOV: 90° (HFOV)
Specifications for IR Camera PI 450i:
- Measurement ranges: –20 … 100 °C / 0 … 250 °C / (20)150 … 900 °C (optional: 200 … 1500 °C)
- Optical resolution: 382 x 288 pixels
- Optics:
- 18° x 14° (f = 20)
- 29° x 22° (f = 12.7)
- 53° x 38° (f = 7.7)
- 80° x 54° (f = 5.7)
- Frame rate: 27 Hz
- Thermal sensitivity (NETD): 40 mK
- Optics FOV: from 18° to 80° HFOV
- Power supply: USB/ PoE (via USB Server)
Specifications for Visual Camera:
- Optical resolution: 1280 x 720 pixels
- Frame rate: 30 Hz
- Lens size: 1/4″
- Max. FOV: 65° (DFOV)
- Power supply: USB/ PoE (via USB Server)
Applications
Operate infrared cameras seamlessly in challenging environments with Optris’ new outdoor housing. Optional air purge attachments provide further protection when needed.
By shielding cameras from the elements, the innovative housing enables accurate infrared thermography and visual monitoring 24/7, even in challenging industrial settings. The durable casing ensures optimal thermal imaging performance despite dust, humidity, extreme cold, heat, and other environmental threats.
What’s In The Box
- Outdoor protective housing
- PI 450i IR camera
- HD video camera
- Air purge collar
- USB Server HT
- Wall mount
Software & Additional Information
Every infrared camcorder comes equipped with Optris PIX Connect thermography software, designed specifically for comprehensive documentation and analysis of thermal images. This software enables real-time temperature data analysis and remote control of your infrared camera. Additionally, you have the flexibility to establish custom alarm levels for your processes and specify visual or acoustic alarm signals.
The thermography software is free of licensing fees and can be easily customised to meet your specific needs.
Browse our full range of infrared thermometers and thermal imaging cameras from Optris, including the Xi400 CM and the PI 640i CM with outdoor housing.
If you have any queries or need help finding the right condition monitoring and fire detection camera for your application, contact our expert team who are always happy to help.
