The Optris CTlaser MT dual laser sensors offer a greater degree of flexibility in available options. The electronics are housed in a remote enclosure with a selection of output and digital interface options. The electronic box also includes its own digital LCD display showing temperature and alarm conditions. All configuration options are set via the front panel removing the need to use a PC to configure the pyrometer. Shorter wavelength versions are also available specifically designed for use with metals, glass and plastic films. All Optris CTlaser pyrometers come with a choice of optics to best suit your requirement.

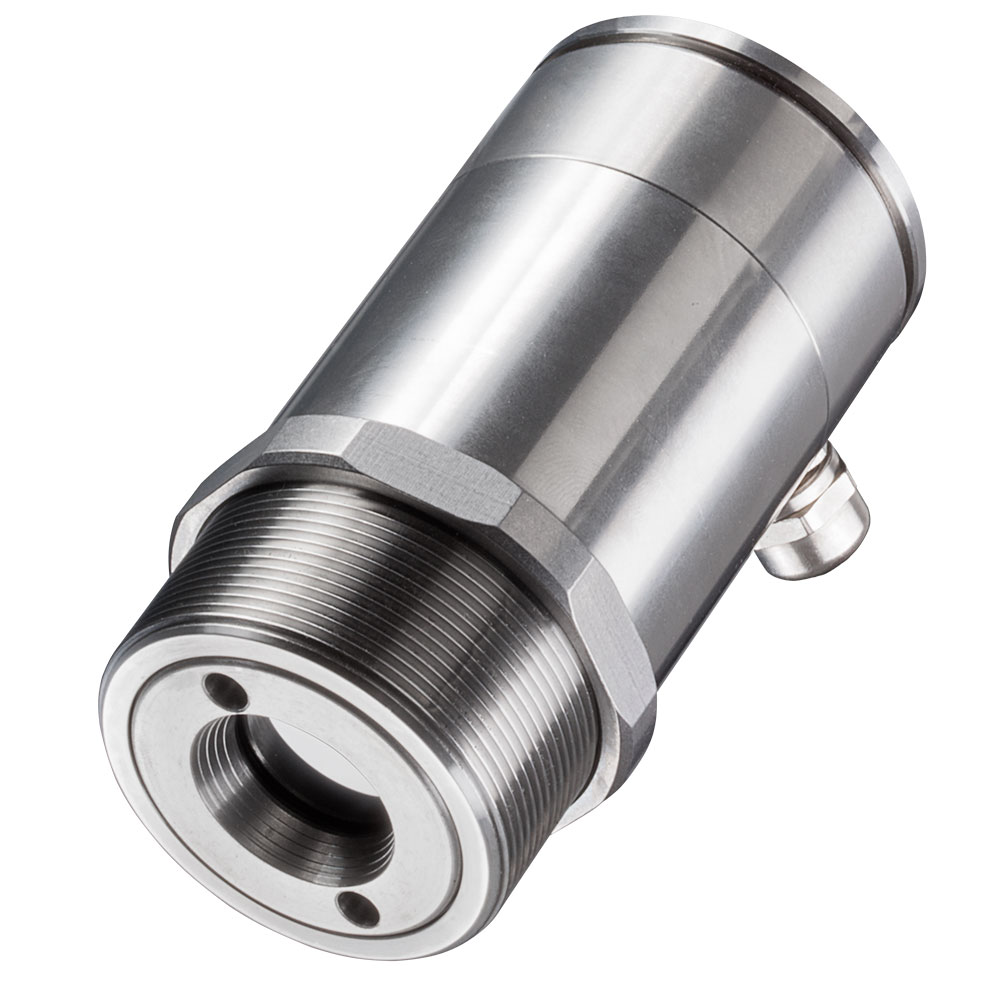

Optris CTlaser MT for Temperature Measurement Through Flames
The Optris CTlaser MT dual laser sensors offer a greater degree of flexibility in available options. The electronics are housed in a remote enclosure with a selection of output and digital interface options. The electronic box also includes its own digital LCD display showing temperature and alarm conditions. All configuration options are set via the front panel removing the need to use a PC to configure the pyrometer.
The Optris CTlaser MT is an Infrared Temperature Sensor designed to measure temperature through flames making it ideal for use in ovens, for use in chemical reactions or for use in brick kilns. With a measuring range of 200°C to 1450°C, we can cover most applications. Selectable optics allow you to choose the most appropriate spot size for your application with the smallest spot of 1.6mm possible. The sensor also has a very fast response time of just 10ms. It is also easy to connect our innovative USB interface which allows simple configuration and on-screen measurement with the included Compact Connect Windows software.
Calibration as well as a full range of accessories are available for the Optris High Performance infrared pyrometers.
Data Sheet
Features
- Accurate temperature measurement through flames in the range of 200°C – 1450°C to monitor work pieces inside ovens (heated with fire), to measure inside chemical reactors and to observe the brick temperature in combustion chambers.
- Double laser aiming marks real spot location and spot size up from 1.6 mm at any distance.
- Usable in all modern applications where “size of spot matters”.
- Optics 45:1 with selectable focus, compact sensor head size.
- Cooling and protection accessories for harsh environmental conditions.
- Usable up to 85°C ambient temperature without cooling and automatic laser switch off at 50°C.
Specifications
Environmental rating: | IP 65 (NEMA-4) |
Ambient temperature: | Sensing Head: -20°C to 85°C (50°C with laser ON) Electronics: 0 – 85°C |
Storage temperature: | Sensing Head: -40°C to 85°C Electronics: -40 – 85°C |
Relative humidity: | 10 – 95%, non condensing |
Vibration: | IEC 68-2-6: 3 G, 11-200 Hz, any axis |
Shock: | IEC 68-2-27: 50 G, 11 ms, any axis |
Weight: | Sensing Head: 600g Electronics: 420g |
Measurement Specifications
Temperature range (1): | 200 – 1450°C (scaleable via programming keys or software) |
Spectral range: | 3.9 μm |
Optical resolution (90 % energy): |
45:1 |
Selectable focus: | CF1 1.6mm @ 70mm CF2 3.4mm @ 150mm CF3 4.5mm @ 200mm CF4 10mm @ 450mm SF 27mm @ 1200mm |
System accuracy (1): | ±1% (2) (at ambient temperature 23 ±5°C) |
Repeatability: | ±0.5% or ±0.5°C (2) (at ambient temperature 23 ±5°C) |
Temperature resolution (digital): | 0.1K |
Response time (90%) (3): | 10ms (90 %) |
Emissivity/Gain : |
0.100 – 1.100 (adjustable via programming keys or software) |
Transmissivity : |
0.100 – 1.100 (adjustable via programming keys or software) |
Signal processing: | peak hold, valley hold, average; extended hold function with threshold and hysteresis |
Software: | optris Compact Connect |
Electrical Specifications
- Outputs / analog:
channel 1: 0/4 – 20 mA, 0 – 5/10 V, thermocouple J, K
channel 2: sensing head temperature (-20 – 85°C as 0 – 5 V or 0 – 10 V), alarmoutput
- Output / alarm: 24 V / 50 mA (open collector)
- Optional: relay: 2 x 60 V DC/42 V ACeff; 0.4 A; optically isolated
- Outputs/ digital (optional): USB, RS232, RS485, Modbus RTU, Profibus DP, Ethernet
- Output impedances:
mA max. 500 Ω (with 5 – 36 V DC)
mV min. 100 kΩ load impedance
thermocouple 20 Ω - Inputs: programmable functional inputs for external emissivity adjustment, ambient temperature compensation, trigger (reset of hold functions)
- Cable length: 3 m (standard), 8 m, 15 m
- Power supply: 8-36 V DC
- Current draw: max. 160 mA
- Laser 635 nm: 1mW, ON/OFF via electronic box or software
