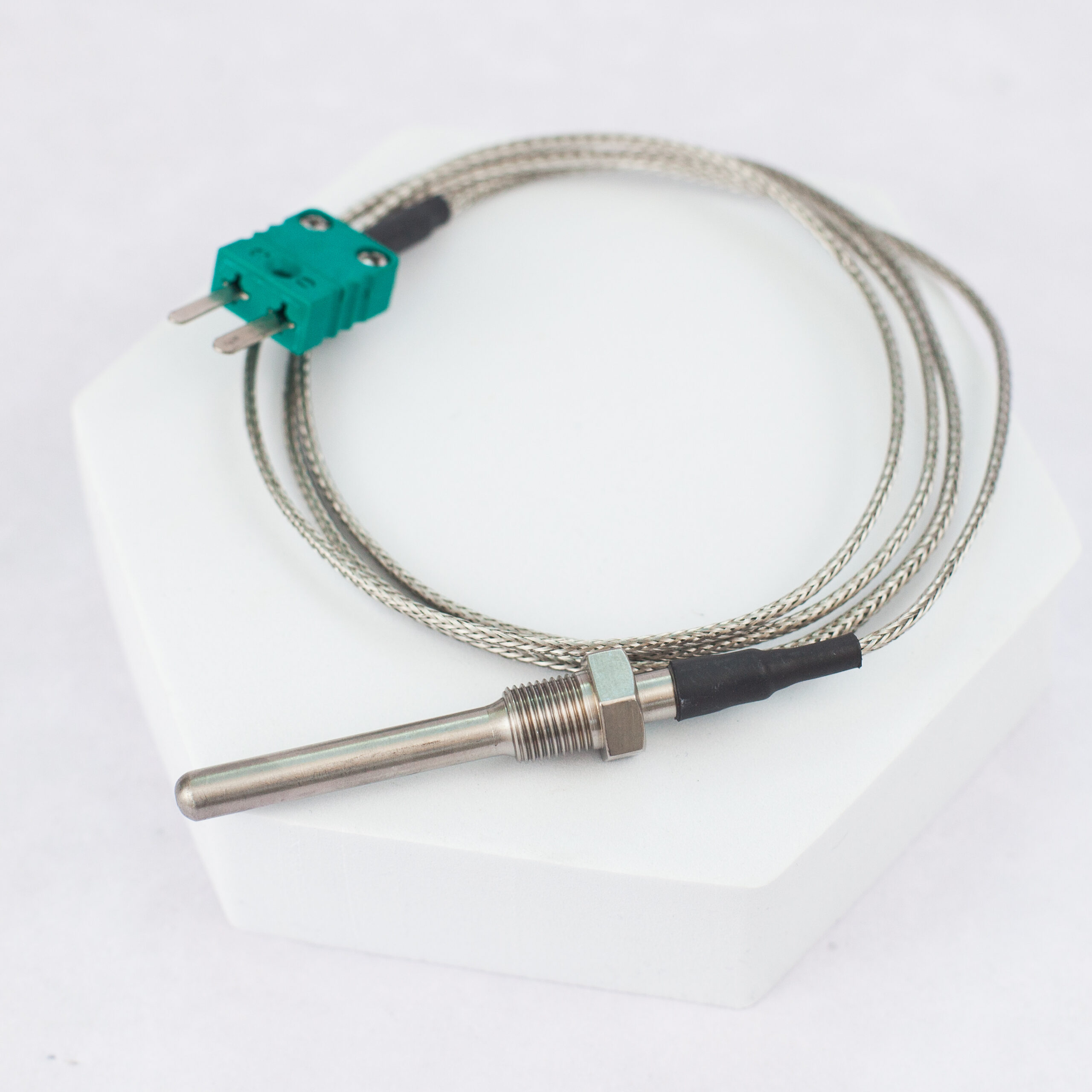

Threaded Thermocouple PPL2-T
Our PPL2-T temperature sensor has a fixed process connection thread-making installation easier than with a compression fitting design. This makes it ideal in OEM applications where assembly time is critical.
The threaded thermocouple sensor is suitable for the measurement of liquids and gases across a wide temperature range. This design of thermocouple with process thread is custom-built so it’s generally possible to meet all of your requirements.
The plain stem of the thermocouple probe is made from 316 stainless steel and the tip and the fitting are TIG welded to give a pressure-tight housing for the sensor and your application. Many metric and imperial probe diameters are available from 2mm upwards. Threads are generally BSP or NPT but we can supply others to your requirements such as Metric, UNF etc.
We stock a range of cables for use in our sensor manufacturing from low-cost PVC to high-performance PTFE (Teflon) and high-temperature glass fibre insulations. We can cover almost any requirement whether this is low or high temperature or other environmental considerations such as moisture ingress protection or protection against corrosive substances.
Lead Types and Operating Range:
- A—PVC/PVC Screened (-10 to +105°C)
- B—PTFE/PTFE Screened (-200 to +250°C)
- C—Glass Fibre Stainless Steel Overbraid (0 to 350°C)
Other cables available upon request)
Other optional extras include pointed tip probes for insertion into semi-solids such as food, reduced diameter sensing tips for improved response times and pre-bent probes to fit your application perfectly.
Additional Information about Thermocouple PPL2-T
The PPL2-T is ideal for installation directly into your process or with our PPL51-TW pocket. The PPL2 is also available as a Resistance Thermometer sensor. We are also able to supply the thermocouple probe with your choice of thermistor sensor.
We offer a comprehensive in-house temperature sensor calibration service and a wide selection of accessories.
As a UK temperature sensor manufacturer, the flying lead PPL2-T thermocouple is made to order based on your process. If you’d like more information about our thermocouples or thermocouple usage, please contact us.
What is a Threaded Thermocouple?
A threaded thermocouple is a type of thermocouple sensor that has a threaded fitting for easy installation and secure attachment. The threaded portion, often made of stainless steel, allows the thermocouple to be screwed into a corresponding threaded receptacle or mounting hole, ensuring a reliable and stable connection in various industrial applications.
