- Probe with Process Connection and Terminal Head
- Welded Process Connection with Fixed Male
- Process Thread under Head
- Easy Installation Direct into Process
- Can also Connect to Pockets / Thermowells
- Ideal in Cramped Spaces or if Lagging
- Extension Impractical
- Choice of Head Fittings and Thread Sizes
- UKAS or Traceable Calibration Available.

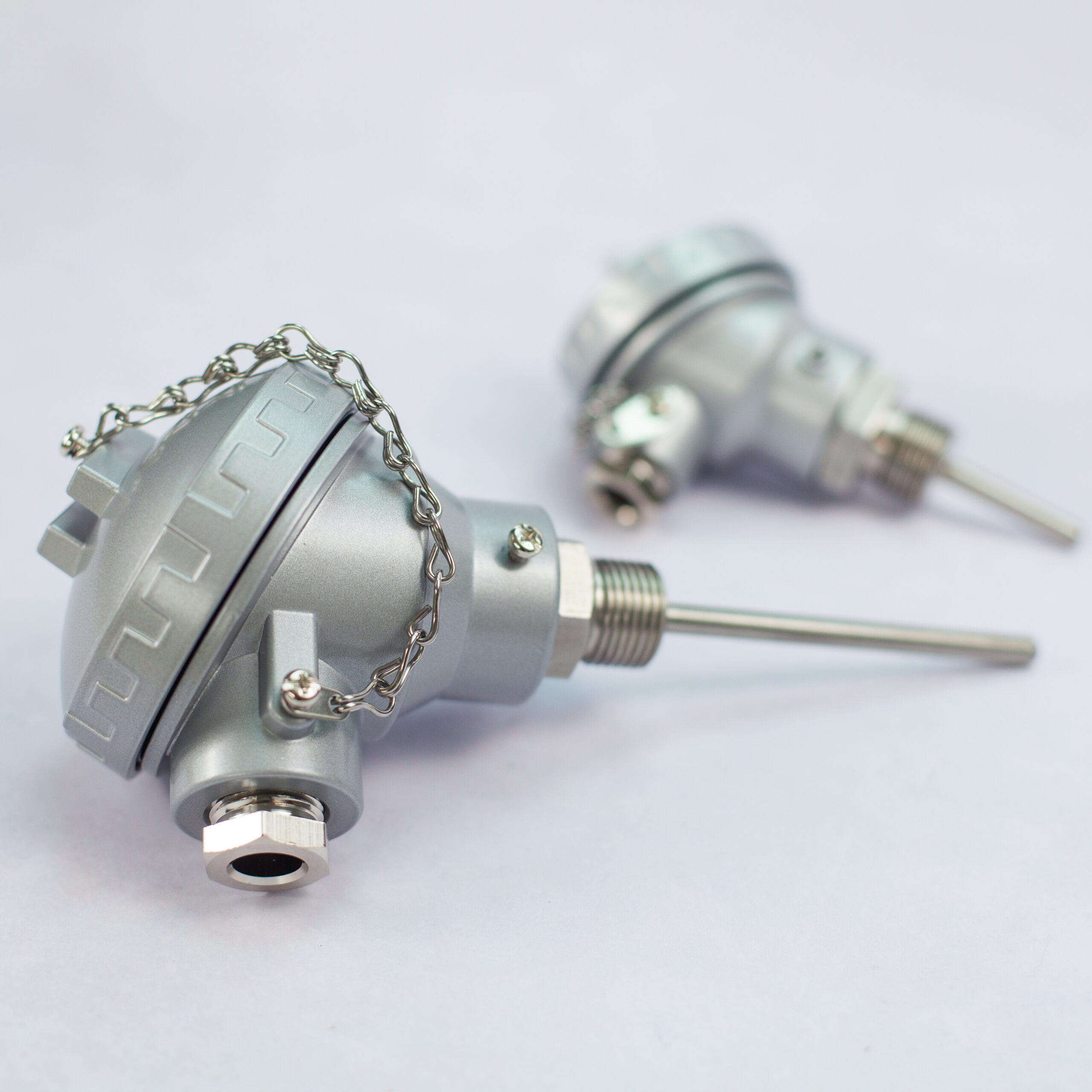

PRT Process Connection Thread and Terminal Head – PPL4-P
£43.50 – £86.70
Our PPL4-P temperature sensor has a fixed male process connection ideal for direct installation into your process. Avoiding the use of compression fittings means that you can be sure the probe is installed correctly and quickly every time. The sensor is suitable for the measurement of liquids and gases across a wide temperature range. All sensors are made to order so it is generally possible to meet all of your requirements.
All wetted parts of the probe are made from 316 stainless steel and are TIG welded to give a pressure tight housing for the sensor. Many metric and imperial probe diameters are available from 3mm upwards.Various thread types are available and they are generally BSP, BSPT or NPT types but we can supply others to your requirements such as Metric, UNF etc.
The product offered here is supplied as a 3 wire Pt100 temperature sensor with Class B tolerance. The probe is 6mm diameter and the length selectable below a 1/2″BSP male process connection thread. An IP68 KNE aluminium alloy terminal and ceramic terminal or in head 4-20mA output transmitter are then fitted. Operating temperature range is -75 to +250°C but we recommend our PPL5-P for higher ambient temperatures to protect the in head electronics.
Need a special variant of this probe? Special length? Different diameter? Higher accuracy? We manufacture to order so contact us now for a quotation or assistance.
We stock a variety of terminal heads that cover all eventualities. The most popular is the aluminium alloy KNE head that is commonly used in the industry. We do however also offer other materials such as ABS, Nylon, FDA approved Polypropylene and of course 316 stainless steel for the most demanding applications. Most of the our terminal heads have IP ratings of IP67 or IP68.
We can fit a number of options inside the terminal heads that best fit your requirements. The simplest is a terminal block allowing you to connect directly to the sensor. Alternatively we can supply temperature transmitters with either a 4-20mA or a 0-10V output. Other options include intrisically safe transmitters or those with HART protocol. We can also fit in head displays if required.
The PPL4-P is ideal for direct installation into your process or for use with our PPL51-TW pocket. The PPL4 is also available as a thermocouple sensor. We are also able to supply the probe with your choice of thermistor sensor.
We offer a comprehensive calibration service and a wide choice of accessories.
Please ask for more information.
Data SheetKey Features
Additional Information
| Sensor Type: | Platinum Resistance Thermometer—Pt100 or Pt1000. Other types available—please enquire. |
| Operating Range : | -50 to +250°C unless otherwise requested. |
| Sheath Material: | 316 stainless steel |
| Tolerance Band: | Class B, Class A, 1/3 DIN, 1/5 DIN or 1/10 DIN |
| Wiring System: | 2, 3 or 4 wire, Simplex or Duplex |
| Head Types: | A – KNE Aluminium Alloy, IP68 B – KSE Aluminium Alloy, IP68 C – ABS, IP67 D – Glass Filled Nylon, IP65 E – 316 stainless steel, IP68 (Other heads available upon request) |
| Head Options: | A – Ceramic Terminal Block B – In Head Transmitter—various types C – Tails for Customers Own Transmitter |
