Optris CT P3 Infrared Temperature Sensor for Thin Film Plastics
With a spectral range of 3.43 μm, the Optris CT P3 miniaturised pyrometer with a programmable electronic box is specifically designed for the non-contact temperature measurement of thin plastic film materials (with a thickness of less than 1mm) such as Polyethylene, Polypropylene and Polystyrene in the range 50°C to 400°C.
- Description
- Features
- General Specifications
- Measurement Specifications
- Electrical Specifications
- Accessories
With a spectral range of 3.43 μm, the Optris CT P3 miniaturised pyrometer with a programmable electronic box is specifically designed for the non-contact temperature measurement of thin plastic film materials (with a thickness of less than 1mm) such as Polyethylene, Polypropylene and Polystyrene in the range 50°C to 400°C.

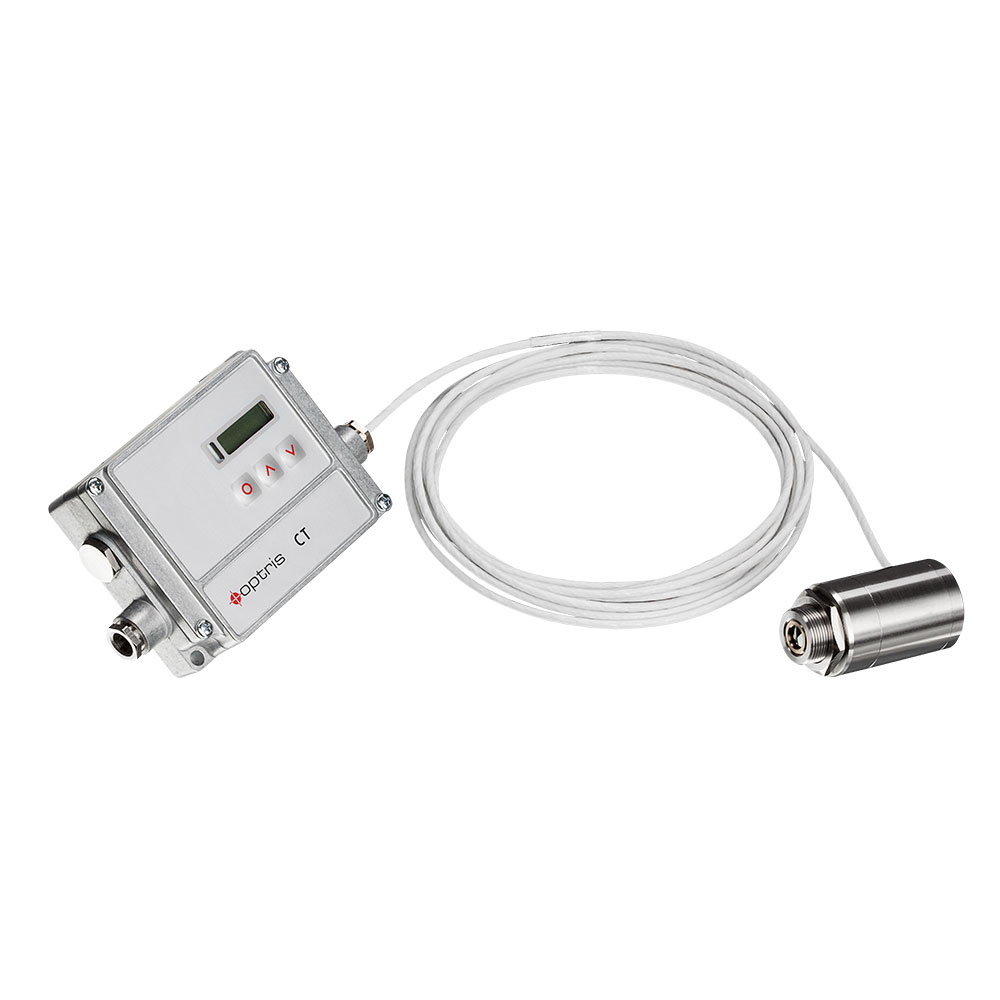

The sensor has a miniature sensing head which is just 29.5mm diameter x 55mm long and allows the sensor to be installed in applications where space is at a premium. Without cooling, it can be used in environments of up to 75°C and has protection class IP 65. Its separate electronics enclosure provides a full range of outputs and inputs as standard including Voltage, mA and Thermocouple. It is also possible to incorporate an interface card which provides simple integration into your existing process control equipment. Options include Ethernet, Profibus DP, CAN bus, RS485, RS232 and USB interface and Compact Connect software.
For the temperature measurement of plastic films such as PET, Polyurethane, PTFE, FEP and Polyamide the Optris CT P7 with its specific spectral range of 7.9 μm is most suitable. For thicker materials, it is perfectly acceptable to use the Optris CT LT range of sensors. If you require any selection assistance please do not hesitate to ask.
Calibration as well as a full range of accessories are available for the Optris Compact infrared pyrometers.
Learn more about the Optris CT in less than 60 seconds…
Features
- Special 3.43 μm wavelength for accurate temperature measurement of thin plastic materials such as Polyethylene, Polypropylene and Polystyrene
- Rugged and usable up to 75°C ambient temperature without cooling.
- Separate electronics with easy accessible programming keys and LCD backlit display.
- Selectable analogue output: 0/4 – 20mA, 0-5V, 0-10V, thermocouple type K or J
- Optional USB, RS485, RS232 interface, relay outputs (2x optically isolated), CAN-Bus, Profibus DP, Ethernet
General Specifications
| Environmental rating: | IP 65 (NEMA-4) |
| Ambient temperature: | Sensing head: 0°C to 75°C Electronics: 0°C to 75°C |
| Storage temperature: | Sensing head:-40°C to 85°C Electronics: -40°C to 85°C |
| Relative humidity: | 10 – 95%, non condensing |
| Vibration: | IEC 68-2-6: 3 G, 11-200 Hz, any axis |
| Shock: | IEC 68-2-27: 50 G, 11 ms, any axis |
| Weight: | Sensing head 200g (with massive housing) Electronics 420g |
Measurement Specifications
| Temperature range (1): |
50°C to 400°C (scaleable via programming keys or software) |
| Spectral range: | 3.43 μm |
| Optical resolution (90 % energy): | 15:1 |
| System accuracy (2) (at ambient temp 23 ± 5 °C ): | ± 3% or ± 1°C (3) |
| Repeatability (at ambient temp 23 ± 5 °C): | ± 1.5 °C |
| Temperature resolution (4): | 0.1K |
| Response time (90% signal): | 100ms |
| Emissivity/Gain: | 0.100 – 1.100 (adjustable via programming keys or software) |
| Transmissivity/Gain: | 0.100 – 1.100 (adjustable via programming keys or software) |
| Signal processing: | peak hold, valley hold, average; extended hold function with threshold and hysteresis (adjustable via programming keys or software) |
| Software: | optris Compact Connect |
Electrical Specifications
| Output/analogue: | 0/4 – 20 mA, 0-5/10V, thermocouple J or K, alarm. |
| Output/alarm: | 24 V/50 mA (open collector) |
| Optional Alarm Output: | relay: 2 x 60 V DC/42 V AC; 0.4 A; optically isolated |
| Outputs/digital (optional): | USB, RS232, RS485, CAN-Bus, Profibus DP, Ethernet |
| Output impedances: | mA max. 500 Ω (with 8-36 V DC) mV min. 100 kΩ load impedance thermocouple 20 Ω |
| Inputs | programmable functional inputs for external emissivity adjustment, ambient temperature compensation, trigger (reset of hold functions) |
| Cable length: | 3m (standard), 8m |
| Current draw: | max. 100mA |
| Power Supply: | 8-36 V DC |
