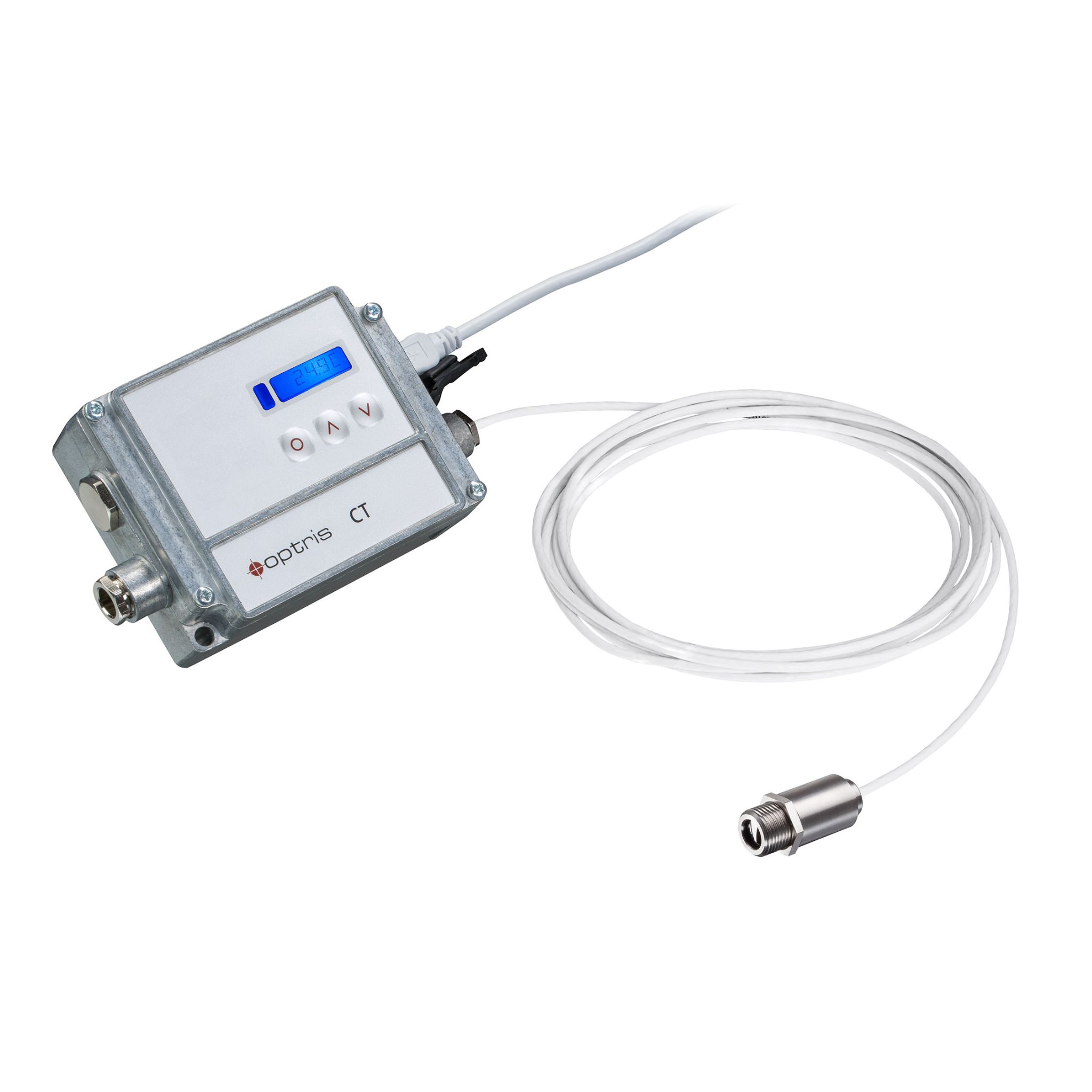

Optris CT LT Compact Infrared Non-Contact Temperature Sensor
The Optris CT LT infrared temperature sensor is a highly versatile device with a small infrared sensor and an optical resolution of either 2:1, 15:1, or 22:1. It also features close focus optics that can be pre-installed at either 0.6mm or 0.8mm at 10mm. The IR sensing head can operate in ambient temperatures up to 356°F (180°C) without additional cooling, making it suitable for a wide range of applications.
The infrared thermometer has the smallest sensing head available in the world at just 14mm diameter x 28mm long and allows the sensor to be installed in applications where space is at a premium.
The selectable analogue outputs and multiple digital interfaces provide high variability, making it a customisable solution. The device has various analogue output options including 0/4-20mA, 0-5, and 0-10 V, and type K or J thermocouples. It is also possible to incorporate a Digital Interface Card which provides simple integration into your existing process control equipment.
The IR sensor also includes a programmable functional input that enables users to set external emissivity, ambient temperature compensation, and reset hold functions. Additionally, it has various hold functions such as peak hold, valley hold, average, and an extended hold function with threshold and hysteresis.
The Optris CT LT also has various digital interfaces such as USB, RS485, RS232 interface, 2 optically isolated relay outputs, CAN-Bus, Profibus DP, and Ethernet, which are available with plug-in options. With its wide range of features and capabilities, the Optris CT LT infrared temperature sensor is a powerful tool for temperature measurement and control.
What’s In The Box
- Mounting nut
- Electronic box with LCD display
- Programming keys
Optris CS LT Additional Information & Software
Optris CT LT is also supplied with the free Optris PIX Connect software. This software is necessary to document and analyse temperature measurement data. It’s compatible with all netbooks, notebooks, and PC systems via Windows XP, Windows Vista, Windows 7 and 8.
The infrared cameras and pyrometers from Optris can now also be operated easily from a smartphone using the IRmobile App for Android in the Google Play Store.
Questions? Contact us for further information, or to talk to one of our engineers about which pyrometer is best for your application.
The Optris CT Series
The Optris CT series of infrared thermometers is a flexible two-part solution suitable for a variety of applications. The system comprises a miniature sensor, an electronic programming box, and universal outputs. The CT series is robust and affordable with a small sensing head.
- Small separate sensing head
- Range of models for every application
- Easy configuration via smartphone and IRmobile App
- Industrial accessories available (protection, installation)
- Usable up to 250 °C ambient temperature without cooling (CThot)
