Optris CTi LThot Non-Contact Temperature Sensor for High Operating Temperatures
In high‑temperature industrial settings where conventional sensors struggle, the Optris CTi LThot delivers the kind of reliability engineers can depend on. Built for harsh ambient conditions, this rugged infrared pyrometer incorporates a sensing head specifically engineered to withstand sustained temperatures up to 250 °C without the need for external cooling. Its resilience in continuous heat makes it a practical, no‑nonsense solution for operations where thermal demands are simply part of the job.
Technical Details
- Compact pyrometer for hot environmental temperatures
- High operating temperature rating to 250°C without cooling
- Temperature range (scalable via programming keys or software): -50°C to 1050°C
- Spectral range: 8 to 14 µm
- Optical resolution (90% energy): 10:1, 2:1
- System accuracy1) (at ambient temperature 23 ± 5°C): ± 1% or ± 1.5°C2)
- Repeatability1) (at ambient temperature 23 ± 5°C): ± 0.5% or ± 0.5°C2)
- Temperature resolution (NETD): 37-45mK
- Response time: 40 ms
- Emissivity / Gain (adjustable via programming keys or software): 0.100 – 1.100
- Transmissivity (adjustable via programming keys or software): 0.100 – 1.100
- Cable length: 3 m (standard), 8 m, 15 m
- Environmental rating: IP 65 (NEMA-4)
Prices from £536.35
Optris CTi LThot Pyrometer for High Ambient Temperatures
(250°C Ambient Temperature without Cooling)
The Optris CTi LThot temperature sensor has been developed for the most extreme conditions in high-temperature areas and is acclaimed for its especially high temperature resistance. The infrared thermometer has an ambient temperature of up to 250 °C without additional cooling.
The IR pyrometer is especially suited for applications in driers, in tempering for metal and glass industries, in the processing of plastics and textiles, and in the semiconductor production.
The Optris CTi LThot sensor has a miniature sensing head at just 29.5mm diameter x 55mm long and allows the sensor to be installed in applications where space is at a premium.

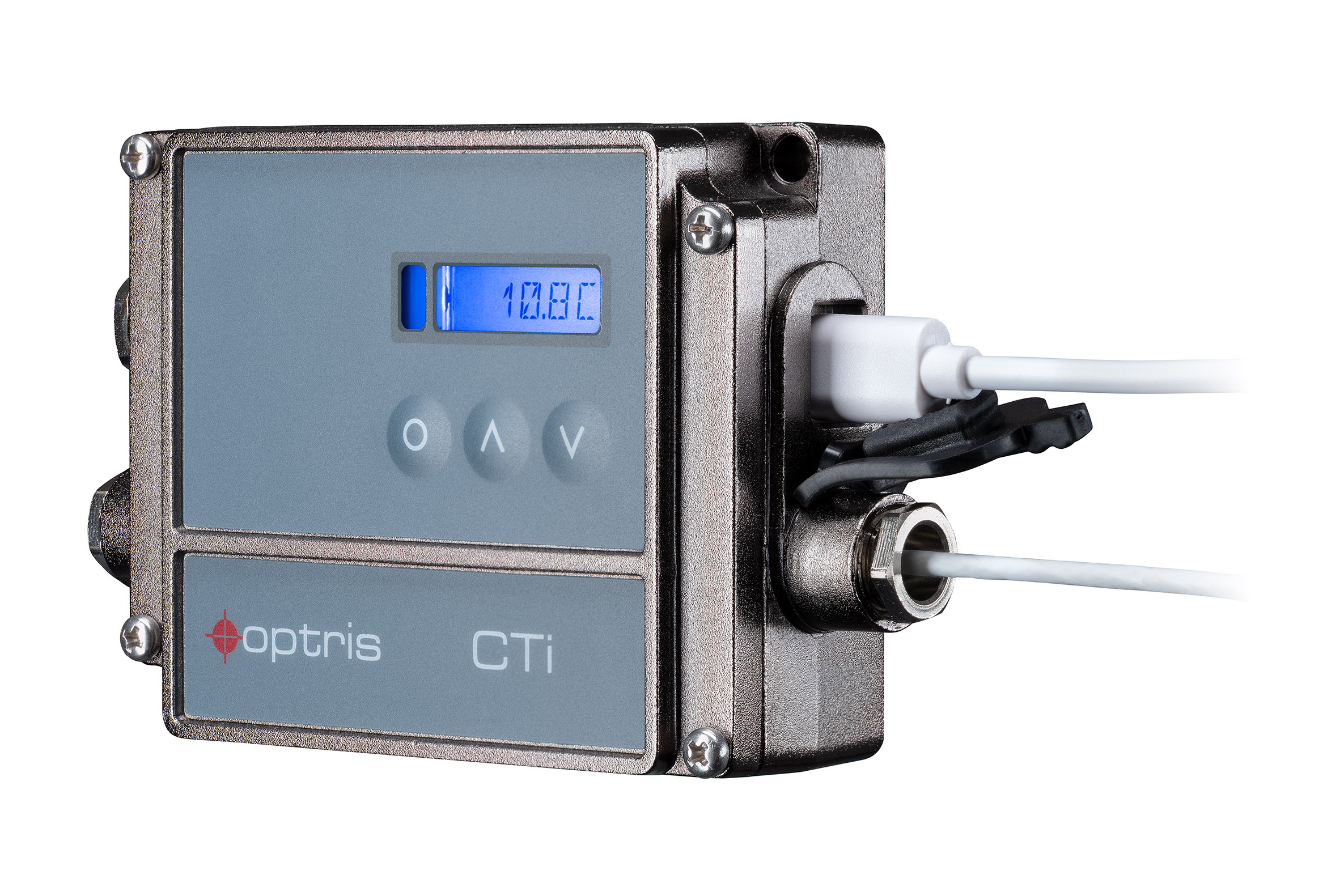

The separate electronics enclosure box provides a full range of outputs and inputs as standard including 0/4-20mA, 0-5, and 0-10 V, and type K thermocouple. It’s also possible to incorporate an interface card which provides simple integration into your existing process control equipment. Options include USB, RS485, RS232, relay , Modbus RTU, Modbus TCP, Profinet, and EtherNet/IP interface and the license-free Compact Connect software.
What’s In The Box
- IR pyrometer
- Mounting nut
- D06ACCTMHS massive housing
- Electronic box with LCD display
- Programming keys
- Manual
Optris CTi LThot Additional Information & Software
Optris Optris CTi LThot is supplied with the Compact Connect software. The licence free software has been developed specifically for the extensive documentation and analysis of temperature measurement data of Optris thermometers.
All of the infrared pyrometers and thermal imagers from Optris can now also be operated easily from a smartphone using the IRmobile App for Android. Using the app, you are able to monitor and analyse your IR temperature measurement on a connected smartphone or tablet.
Calibration and a range of accessories for your Optris CTi LThot are also available, such as air purge and mounting brackets.
Areas of Application
Due to its unique stainless steel measuring head, capable of resisting temperatures of up to 250°C, the infrared thermometer Optris CTi LThot is ideal for the measurement of non-metallic surfaces in hot ambient conditions to 250°C without cooling.
The pyrometer is suitable for use in driers and ovens, tempering facilities of metal and glass industries, plastics and textile processing, and semiconductor production.
