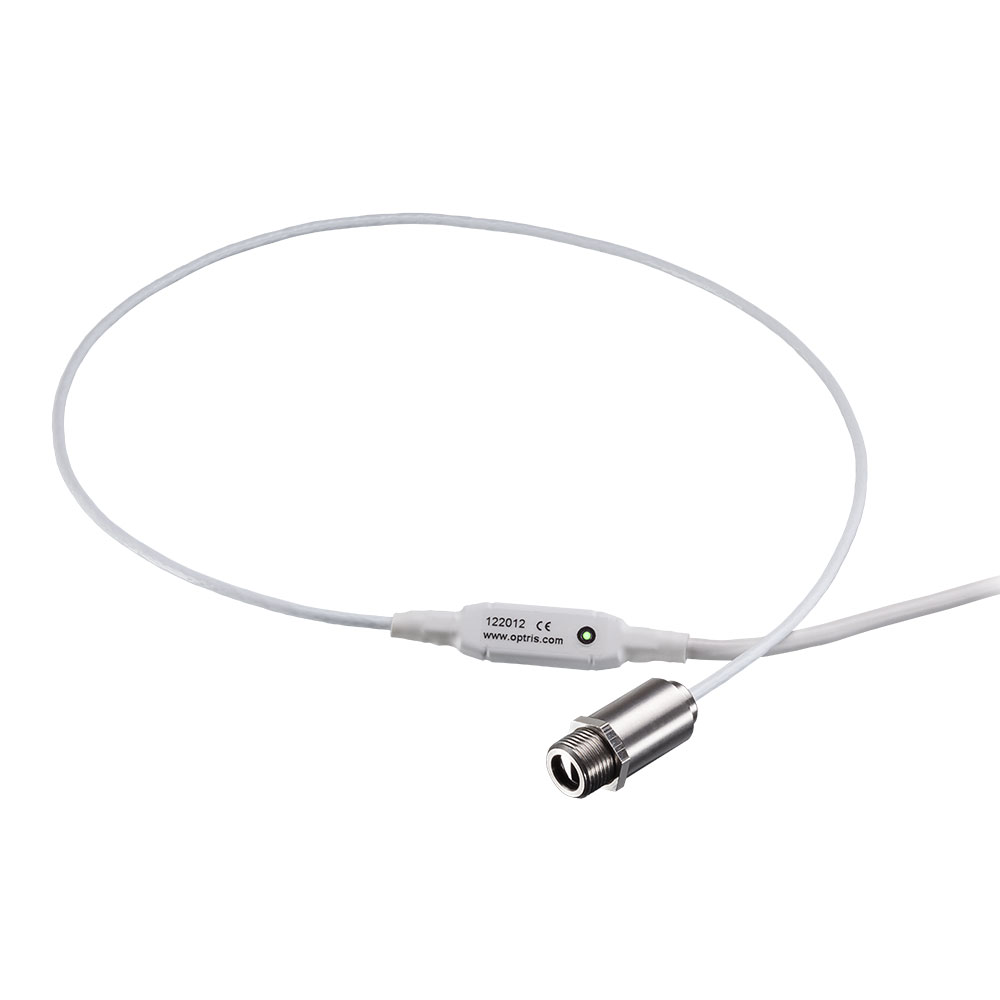

Optris CSmicro LTH Miniature Infrared Temperature Sensor

The Optris CSmicro LTH pyrometer is equipped with an innovative, miniaturised stainless steel measuring head, optimally suited for installation in limited spaces. Its small size and its temperature resistance up to 180°C make the mechanic integration of the measuring head especially cost-efficient.

Technical Details

  • M12x1, 28mm long
  • Stainless steel housing
  • Temperature range: – 50 °C to 1030 °C
  • Spectral range: 8 to 14 µm
  • Response time: 150 ms (LTH)
  • Scalable analogue output: 0 – 5/10 V or 4 – 20 mA (two-wire); additional simultaneous alarm output
  • Rugged coated silicon optics
  • ±1.0% accuracy
  • Optical resolution:
    • 22:1 (LT22H)
    • 15:1 (LT15 / LT15H)
    • 2:1 (LT02
  • Environmental rating: IP 65 (NEMA-4)
  • Usable up to 180 °C ambient temperature without cooling
  • Green LED alarm indication, aiming support, self diagnostic or temp. code indication
  • Easy programming via smartphone app (IR mobile) or Windows software (Compact Connect)
Download the PDF data sheet for the Optris CSmicro LTH Miniature Infrared Temperature SensorData Sheet
